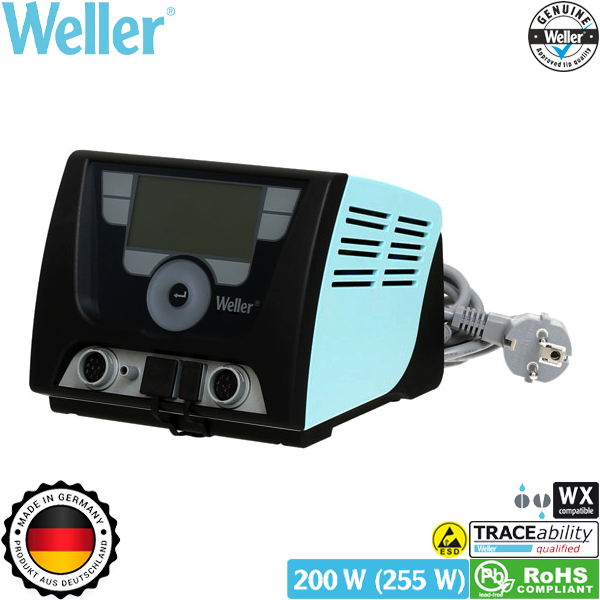

Σταθμός κόλλησης-αποκόλλησης WXD 2 T0053426399N Weller

 Τεχνικές προδιαγραφές

WXD 2

2-Channel Power Unit, 200 W (255 W)
Cost effective because only one station is needed
Less rework by optimal use of tools and the correct working temperature. Reduction of running costs by longer tip lifetime.
Desoldering iron with stand-by mode
ESD safe
For operation with external compressed air

Dimensions W x D x H (mm): 174 x 154 x 135
Channels: 2
Voltage :230 V, 50 Hz
Heating output: 200 W (255 W)
Fuse :T2 A
Display :255 x 128 pixels / Backlighting
Temperature stability °C: ±2
USB interface
Vacuum max. :55 kPa (8psi)

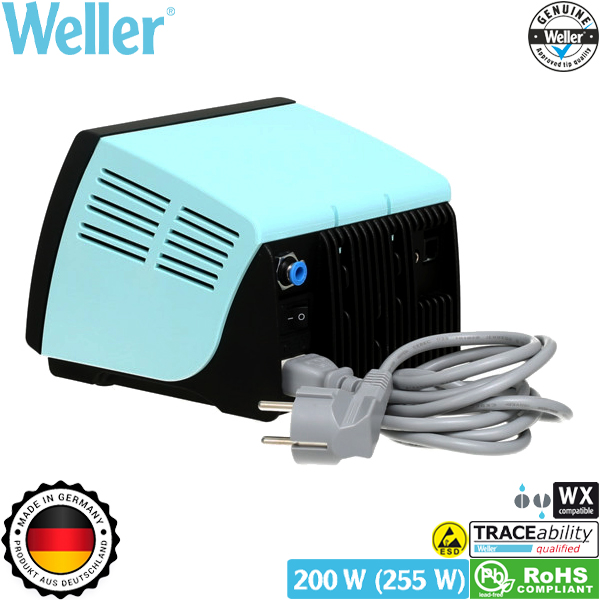

Compressed air connection Outer diameter 6 mm (0.24 "), oil-free, dry compressed air
Air consumption l/min :35
Temperature stability °F :±4
Temperature accuracy °F: ±17
Dimensions W x D x H (inch) :6.69 x 5.94 x 5.12
Weight (ca) in kg :3.8
Temperature range (depends on tool) °C: 50 - 550
Temperature range (depends on tool) °F :150 - 999
USB USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
Equipotential balance
WX compatible
ESD-safe
IPC conformity
