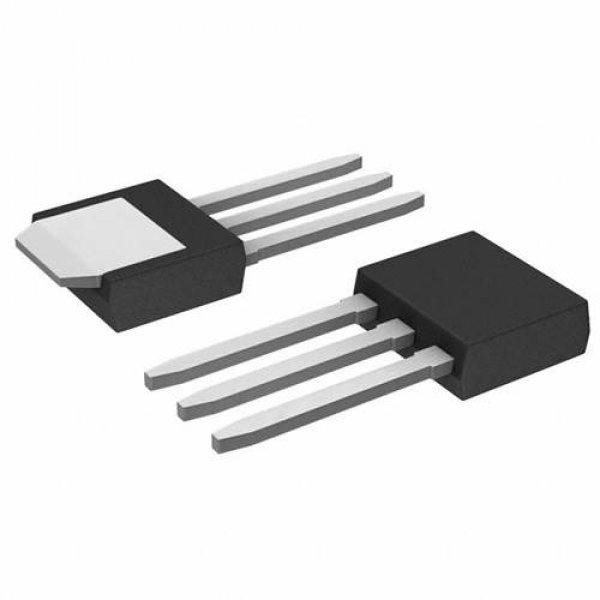

Zener MOSFET N-Ch, STD3NK80Z-1 800V-3.8ohms SuperMESH 2.5A

Specifications

Product Category: MOSFET
Manufacturer:
Mounting Style: Through Hole
Package/Case: TO-251AA-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 800 V
Id - Continuous Drain Current: 2.5 A
Rds On - Drain-Source Resistance: 4.5 Ohms
Vgs - Gate-Source Voltage: 30 V
Vgs th - Gate-Source Threshold Voltage: 4.5 V
Qg - Gate Charge: 19 nC
Maximum Operating Temperature: + 150 C
Packaging: Tube
Channel Mode: Enhancement
Brand: STMicroelectronics
Configuration: Single
Fall Time: 40 ns
Forward Transconductance - Min: 2.1 S
Height: 6.2 mm
Length: 6.6 mm
Minimum Operating Temperature: - 55 C
Pd - Power Dissipation: 70 W
Rise Time: 27 ns
Series: N-channel MDmesh
Factory Pack Quantity: 75
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 36 ns
Typical Turn-On Delay Time: 17 ns
Width: 2.4 mm
Unit Weight: 4 g
