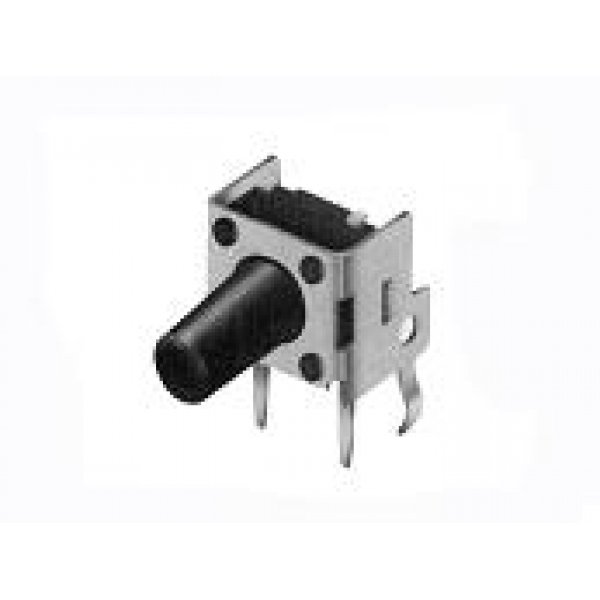

Tact switch 6x6x3.8mm 2pin γωνία 1N SPST-NO B3F-3120 OMRON
-27%
Προβολή
SPECIFICATIONT
Contacts configuration SPST-NO
Number of positions 2
DC contacts rating @R
(at resistive load) 0.05A / 24V DC
Mounting THT
Illumination none
Operating Force 0.98N
Body dimensions 6x6mm
Button height
(measured from PCB) 3.85mm
Switching method
(item in brackets is instantaneous) OFF-(ON)
Terminal pitch 2.5x4.5mm
Operating temperature -25...70°C
Button shape round
Actuator colour black
Key stroke 0.25mm
Leads for PCB, angled
Contact material phosphor bronze
Max. contact resistance: 100mΩ
Min. insulation resistance 100MΩ
Manufacturer series B3F
Contact plating silver plated
Mechanical durability 1000000 cycles
