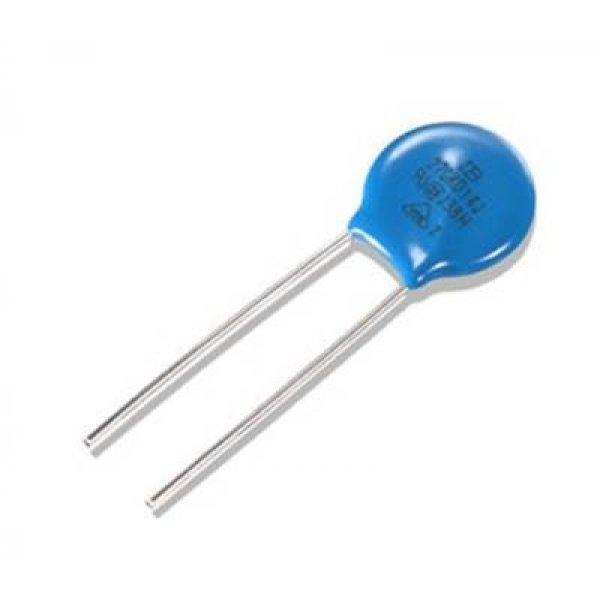

Varistor Φ10 275V MOV431KD10
Προβολή
Technical data
Casing D=10mm
Operating voltage VAC 275VAC
Operating voltage VDC 350VDC
Varistor voltage VDC 430VDC
Peak surge current 8/20µs 2500A
Peak energy 10/1000µs 65J
Capacitance @1kHz 400pF
Power 0.40W
Type D - Standard
Temperature -40/+85°C
Pitch 7.5mm
Mounting THT
Casing D=10mm
Operating voltage VAC 275VAC
Operating voltage VDC 350VDC
Varistor voltage VDC 430VDC
Peak surge current 8/20µs 2500A
Peak energy 10/1000µs 65J
Capacitance @1kHz 400pF
Power 0.40W
Type D - Standard
Temperature -40/+85°C
Pitch 7.5mm
Mounting THT
