Επιτοίχιο control χειρισμού L-500 INTER-M

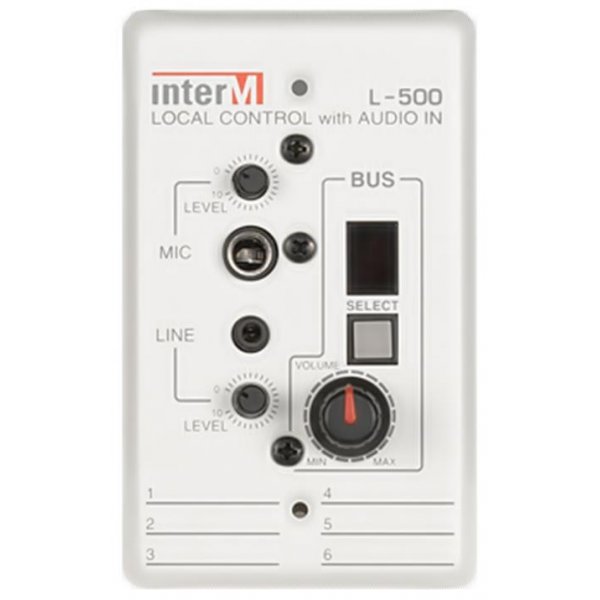

L-500

*Remote Control of Zone Volume and Seletion of BGM Source

*Independent Local MIC and BGM Inputs

*Source Designation

*Convenient Installation without ID Setting(Auto Addressing)

*RS-422 Communication between L-500 and Z-500

Audio Output 0dB(Balanced)

Audio Input

Local BUS(LINE) -10dB
MIC -50dB(Balanced)
Frequency Response 3dB ±3dB
MIC(100Hz ~ 15kHz) ±3dB
S/N
BUS Better than 70dB
MIC Better than 70dB
THD
BUS Less than 0.1%
MIC Less than 0.1%
Priority Control EM>FIRE>TIMER>PAGING>Priority Control RM1>RM2>RM3>RM4>L-500>AUDIO BUS

Serial Interface(RS-422)

Communication speed 9600bps
Communication distance Maximum 300m(UTP CAT5)
Power Source DC 24V, 50mA
Operating Temperature -10°C ~ +40°C
Weight 130g / 0.3lb
Dimensions 70(W)x114(H)x60(D)mm / 2.8(W)X4.5(H)X2.4(D)in
