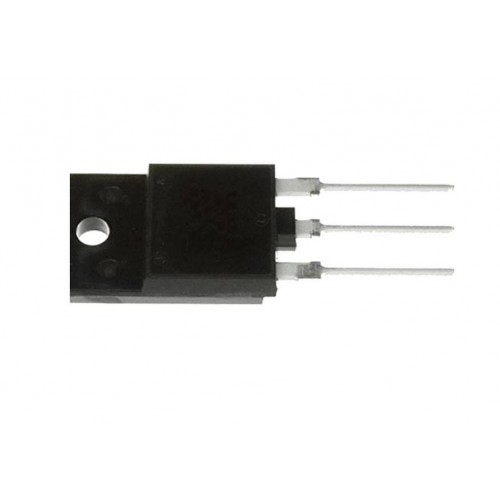

Transistor TL783CKCSE3 Linear Voltage Regulators
Προβολή
Description:
Linear Voltage Regulators 3 Terminal 700mA Hi VltgAdj+VltgRegulatοr
Specifications
Output Type: Adjustable
Output Voltage: 1.25 V to 125 V
Output Current: 0.7 A
Load Regulation: 0.5 %
Input Voltage MAX: 150 V
Line Regulation: 0.01 % / V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: TO-220-3
Brand: Texas Instruments
Input Voltage MIN: 21.5 V
Minimum Operating Temperature: 0 C
Number of Outputs: 1
Packaging: Tube
Polarity: Positive
PSRR / Ripple Rejection - Typ: 76 dB
Linear Voltage Regulators 3 Terminal 700mA Hi VltgAdj+VltgRegulatοr
Specifications
Output Type: Adjustable
Output Voltage: 1.25 V to 125 V
Output Current: 0.7 A
Load Regulation: 0.5 %
Input Voltage MAX: 150 V
Line Regulation: 0.01 % / V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: TO-220-3
Brand: Texas Instruments
Input Voltage MIN: 21.5 V
Minimum Operating Temperature: 0 C
Number of Outputs: 1
Packaging: Tube
Polarity: Positive
PSRR / Ripple Rejection - Typ: 76 dB
- Κατασκευαστής: Texas Instruments
- Κωδικός Προϊόντος: 007001
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 5,00€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 4,03€
