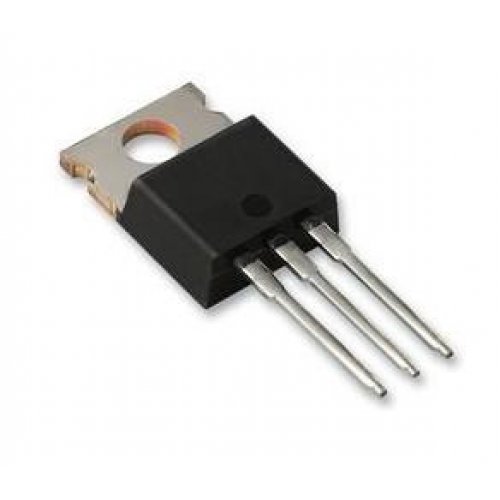

Transistor NPN 100V 8A HFE=750 TO-220 BDX53C STMicroelectronics
Προβολή
Specifications
Configuration: Single
Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 100 V
Emitter- Base Voltage VEBO: 5 V
Collector- Base Voltage VCBO: 100 V
Maximum DC Collector Current: 8 A
Maximum Collector Cut-off Current: 200 uA
Pd - Power Dissipation: 60 W
Mounting Style: Through Hole
Package/Case: TO-220-3
Maximum Operating Temperature: + 150 C
Continuous Collector Current: 8 A
DC Collector/Base Gain hFE Min: 750
Height: 9.15 mm
Length: 10.4 mm
Width: 4.6 mm
- Κατασκευαστής: STMicroelectronics
- Κωδικός Προϊόντος: 006983
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 1,14€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 0,92€
