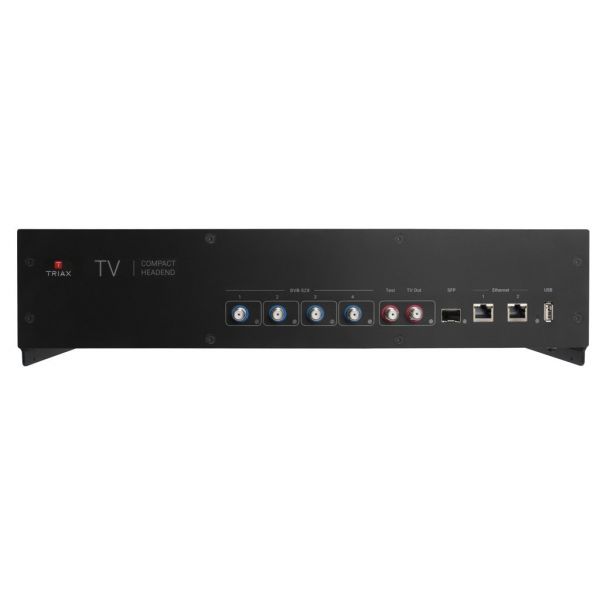

Transmodulator Compact Headend FTA TDcH 16S-Q Triax

TDcH Compact Headend – free to air
DVB-S and DVB-S2 conversion to QAM.

Built for both wall mounting and 19” racks and equipped with 4 DVB-S/S2 inputs, 16 DVB-S2X tuners and 16 QAM modulators.

The TDcH compact headend is optimised and engineered to meet specific TV distribution requirements in hospitality, multi-dwelling units and related sectors with an appealing, competitive cost per service ratio.

Our brand new, intuitive platform smoothly integrates easy installation, an elegant graphical user interface, central decryption, remote access, and straightforward TV service updates with LCN.

Features
- 4 x SAT IF inputs with integrated multiswitch
- 16 x DVB-S2 tuners
- 16 x QAM full band modulators
- Electronically adjustable output level
- Suitable for adjacent channels
- Symbol rates and modulation individually adjustable
- Transport Stream Processing:
- Network Information Table (NIT) for complete head-end station
- LCN (Logical Channel Numbering)
- Service Filtering with the option for
- Remove unwanted services
- Remove services for minimize data rate
- HTML user interface via self-signed HTTPS
