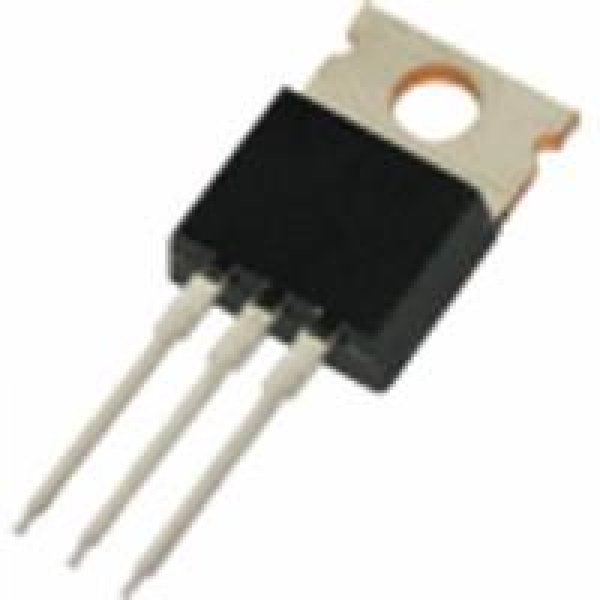

Transistor NPN TO-220 100V 6A 65W TIP41C
Προβολή
Specifications
Package/Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 100 V
Collector- Base Voltage VCBO: 100 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 1.5 V
Maximum DC Collector Current: 6 A
Gain Bandwidth Product fT: 3 MHz
Maximum Operating Temperature: + 150 C
Series: TIP41C
Continuous Collector Current: 6 A
DC Collector/Base Gain hFE Min: 15
DC Current Gain hFE Max: 75
Height: 9.4 mm (Max)
Length: 10.67 mm (Max)
Minimum Operating Temperature: - 65 C
Pd - Power Dissipation: 65 W
Package/Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 100 V
Collector- Base Voltage VCBO: 100 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 1.5 V
Maximum DC Collector Current: 6 A
Gain Bandwidth Product fT: 3 MHz
Maximum Operating Temperature: + 150 C
Series: TIP41C
Continuous Collector Current: 6 A
DC Collector/Base Gain hFE Min: 15
DC Current Gain hFE Max: 75
Height: 9.4 mm (Max)
Length: 10.67 mm (Max)
Minimum Operating Temperature: - 65 C
Pd - Power Dissipation: 65 W
