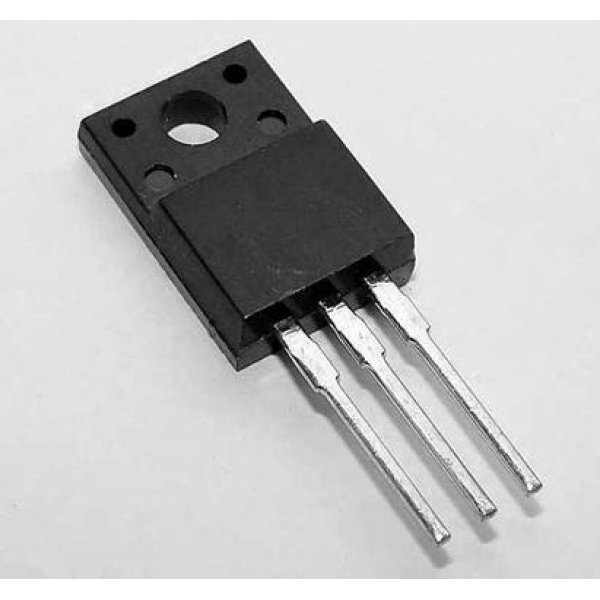

Transistor NPN TO-3PFa 2SD1680
Προβολή
2SD1680 - Silicon NPN Power Transistors - Savantic, Inc.
DESCRIPTION
• With TO-3PFa package
• High speed switching
• High VCBO
• Large collector power dissipation
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 70 W
Maximum Collector-Base Voltage |Vcb|: 330 V
Maximum Collector-Emitter Voltage |Vce|: 200 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 60
APPLICATIONS
• For horizontal deflection output applications
