Θερμόμετρο ψηφιακό με θερμοστάτη NTC -50 - +110°C 12v Dc XH-W1209T DEBO

DEBO XH-W1209 T

Product Description

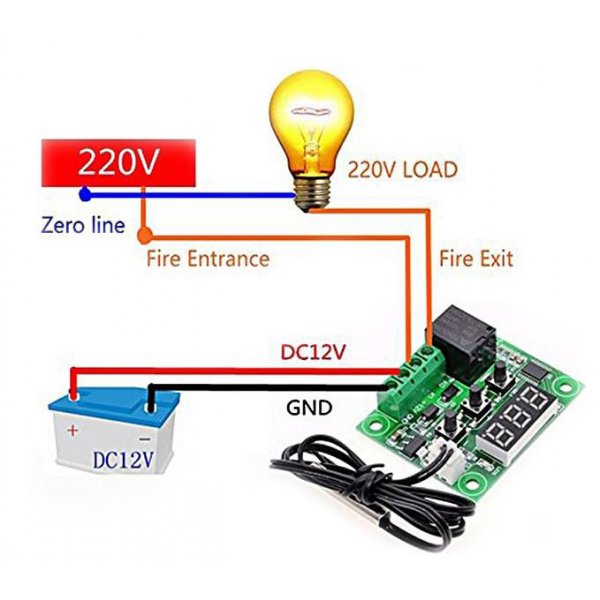

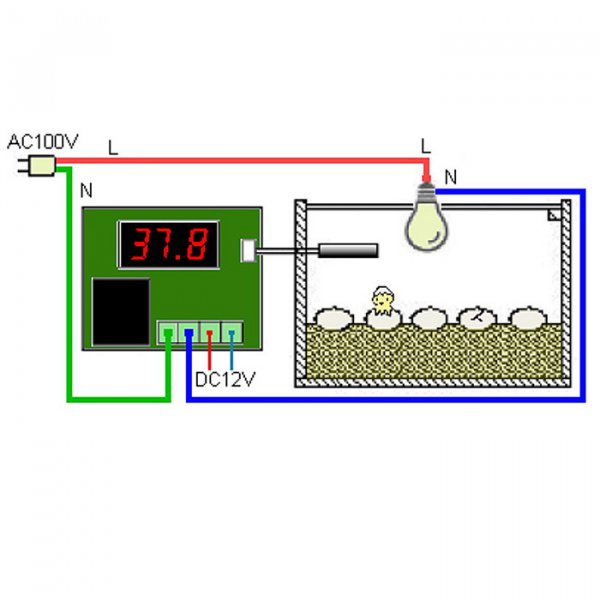

This thermostat module can be used to switch a consumer on or off at a temperature you define. The module can be programmed via the LED display with various option codes.

Temperature range: -50 - +110°C
Resolution: 0.1°C (-9.9 - 99.9°C), 1°C (other areas)
Measuring accuracy: ±0.1°C
Update frequency: 0.5 s
Operating voltage: 12 V DC
Power consumption: static: = 35 mA, when energising the relay:= 65 mA
Probe: NTC (10K 0.5%), waterproof
Output: single-channel relay/10 A
Operating temperature: -10 - +60°C/humidity: 20 - 85%
Probe cable length: approx. 50 cm.

4 holes for screw mounting (M3.0) or for installation in an optional housing

PCB dimensions: 50 x 40 x 16 mm

Package weight : 0.025 kg
