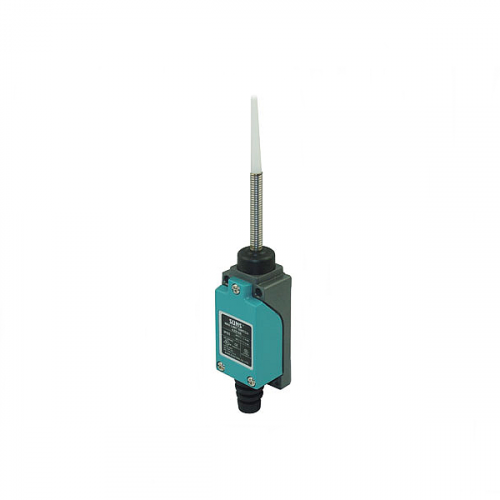

Διακόπτης τερματικός πλαστικός με βραχίονα περιστρεφόμενο 10A 600VAC SND2104 SUNS

SND2 Safety Limit Switches

Features:

*Glass fiber reinforced plastic body
*Easily interchangeable contact block
*Galvanically separated contacts
*Screw terminals with self-lifting clamps for easy wiring
*Positive Opening of NC contacts
*4 x 90o actuator positions
*Cable entry available: M20, PG13.5 and 1/2"NPT
*Conform to EN 50047

Specifications:

Operating Speed: 0.05mm-2m/sec
Operating Frequency:　
Mechanical:120ops/min
Electrical: 30ops/min
Insulation Resistance:　>100MΩ @ 500V DC
Contact Resistance:　　<25mΩ Rated
Current/Voltage:　10A/600V AC (EN60947-5-1)
Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300
Dielectric Strength:　1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground
Service Life: Mechanically 10,000,000,
Electrically 500,000
Operating Temperature:　-25~80℃(-13~176°F)
without formation of ice Humidity:　　　　 <95%RH
Weight：　　　 59~109g
Degree of protection:　 IP65
