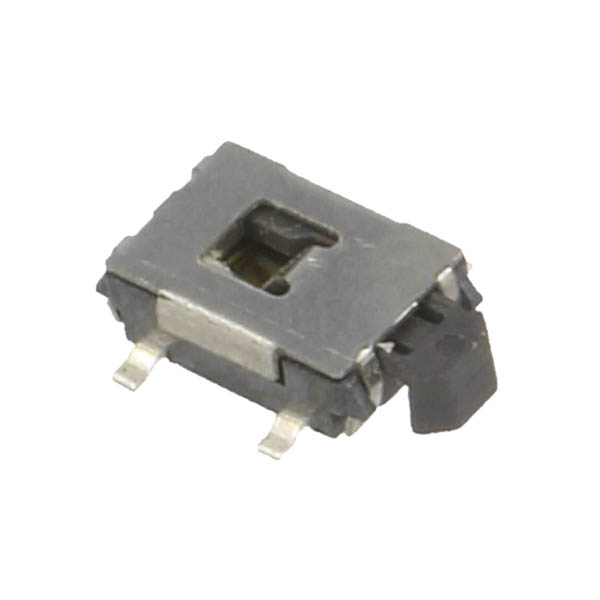

Tact switch SMT 4.5x6.1x18mm γωνία 4pin SPST-NO (OFF-(ON) 1.8N Ninigi
Προβολή
Τεχνικές προδιαγραφέςSpecification
Contacts configuration SPST-NO
Number of positions 2
DC contacts rating 0.05A / 12V DC
Mounting SMT
Illumination none
Operating Force 1.8N
Body material stainless steel, thermoplastic
Body dimensions 4.5x6.1mm
Button height(measured from PCB) 1.3mm
Switching method(the position in bracket indicates momentary position.) OFF-(ON)
Terminal pitch 3.4x5.8mm
Operating temperature -20...70°C
Button shape rectangular
Actuator colour blue
Terminals material brass
Terminals plating silver plated
Leads for PCB
Contact material phosphor bronze
Max. contact resistance: 100mΩ
Contact plating silver plated
Stable positions number 1
Gross weight0.126 g
