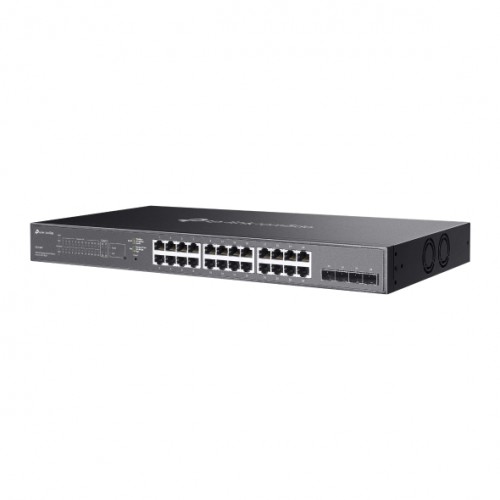

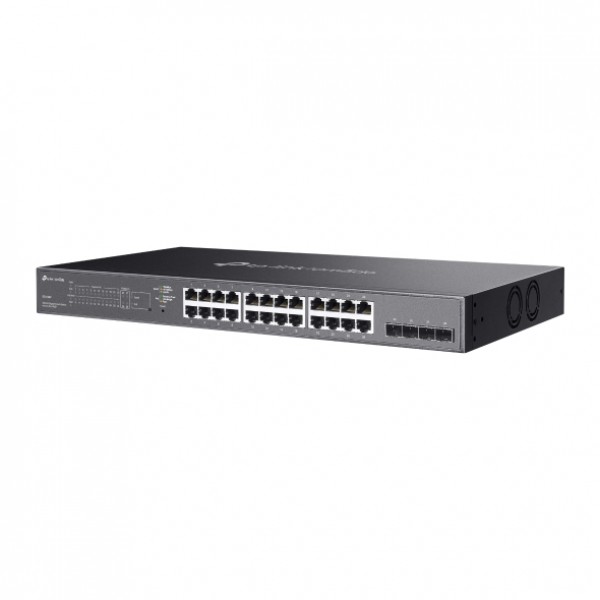

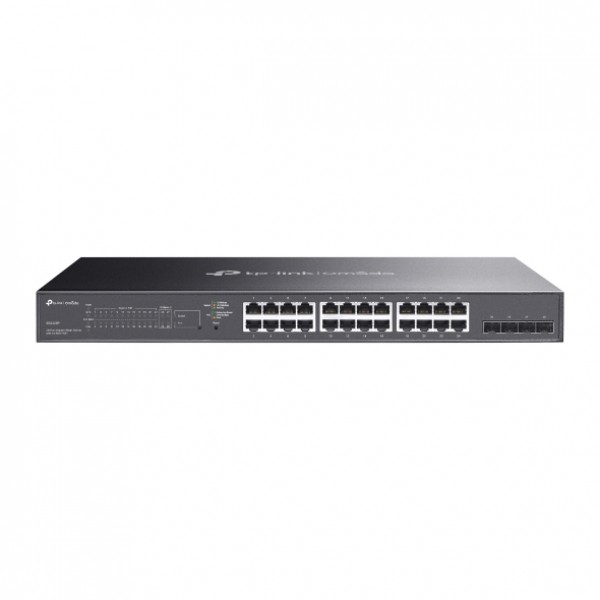

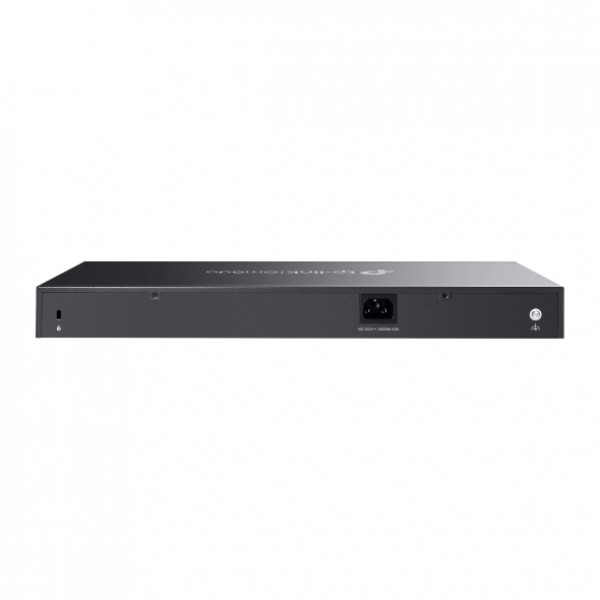

Switch 28-Port Gigabit Smart with 24-Port PoE+ SG2428P Omada TP-LINK

Χαρακτηριστικά

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface:
• Θύρες 24 × 10/100/1000 Mbps RJ45 (Αυτόματη διαπραγμάτευση / Αυτόματο MDI / MDIX)
• 4 × Gigabit SFP Slots
Network Media:
• 10BASE-T: Καλώδιο UTP κατηγορίας 3, 4, 5 (μέγιστο 100m)
• 100BASE-TX / 1000Base-T: Καλώδιο UTP κατηγορίας 5, 5e ή παραπάνω (μέγιστο 100m)
• 1000BASE-X: MMF, SMF
Fan Quantity: 2
PoE+ Ports(RJ45)
• Standard: συμβατό με 802.3at / af
• Θύρες PoE +: 24 θύρες
• Τροφοδοσία: 250 W

Mounting Rack Mountable
Max Power Consumption • 294.7 W (220 V/50 Hz) (με 250 W PD συνδεδεμένο)
Max Heat Dissipation • 1005.66 BTU/hr (220 V/50 Hz) (με 250 W PD συνδεδεμένο)

PERFORMANCE
Bandwidth/Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB

SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features
• 16 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

• Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
