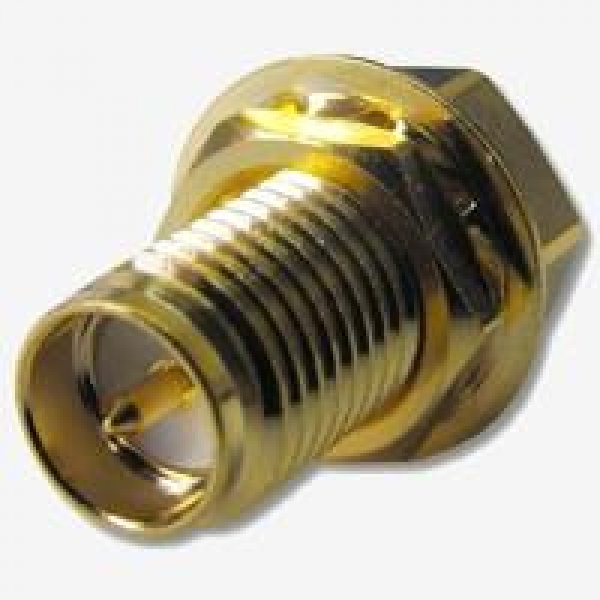

RP-SMA Bulkhead Crimp connector for 100, RG-174 series cable
Αναμένεται Σύντομα
Προβολή
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Body (Material/Finish) Brass/Gold
Contact (Material/Finish) Bronze/Gold
Crimp Tube (Material/Finish) Annealed Copper/Gold
Dielectric Teflon
Frequency Range 0 to 11.0 GHz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Body (Material/Finish) Brass/Gold
Contact (Material/Finish) Bronze/Gold
Crimp Tube (Material/Finish) Annealed Copper/Gold
Dielectric Teflon
