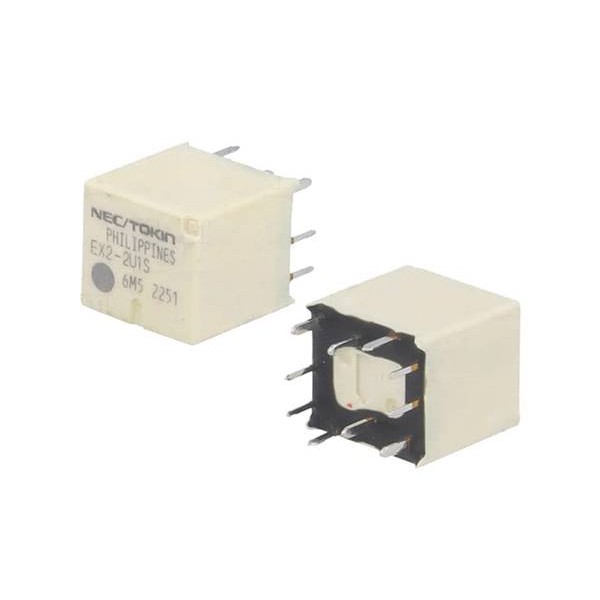

Relay mini 12V 75mA DC 1 Form C SPDTx2 Auto EX2-2U1S NEC Tokin
-37%
Προβολή
Τεχνικές προδιαγραφέςSpecification
Type of relay electromagnetic
Contacts configuration SPDT x2
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Material: Silver Alloy (Ag)
Rated coil voltage 12V DC
Contact current max. 30A
Relay variant automotive
Coil voltage min. 6.5V DC
Coil resistance 160Ω
Operating temperature -40...125°C
Mounting PCB
Coil power consumption 900mW
Mechanical durability 1000000 cycles
Coil current 75mA
Switched voltage max. 16V DC
Gross weight6.29 gr
Body dimensions 13.7x13.6x12.1mm
