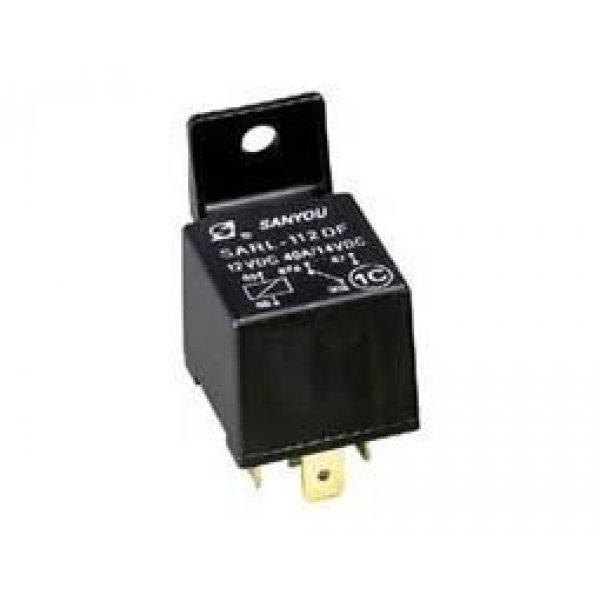

Relay auto 12v 40A 1 x N/O From C SARL-112DMF SANYOU

Relay auto 12v 40A 1 x N/O From C SARL-112DMF SANYOU

Relay auto 12v 40A SARL-112DF 1 x N/O SANYOU


SARL-Relay

Quick connect terminal arrangement
Operating temperature range -40 to + 85 deg C

Typical Application
For direct connection with cell MOTORS,Transmission,etc. and Anti-Locking Brake System

Arrangement 1a,1b,1c,2a
Contact material Silver alloy
Contact resistive
(By voltage drop 1A 6VDC) 50mΩ Max.
UL/C-UL rating
Resistive Load (cosΦ=1)
NC:30A 14VDC
NO:40A 14VDC
Max. switching voltage 40A
Max. carrying current 500W
Exoected life (min. ope)
Mechanical (at 180 cpm) 1 Χ 107
Electrical (at 20 cpm) 1 Χ 105
Norminal operation power 1.8W
  • Κωδικός Προϊόντος: 019035
  • Διαθεσιμότητα: Διαθέσιμο
  • Τιμή web: 2,29€
  • (H τιμή συμπεριλαμβάνει ΦΠΑ)
  • Χωρίς ΦΠΑ: 1,85€

Χρειάζεσαι βοήθεια;  +30 26510 24011
