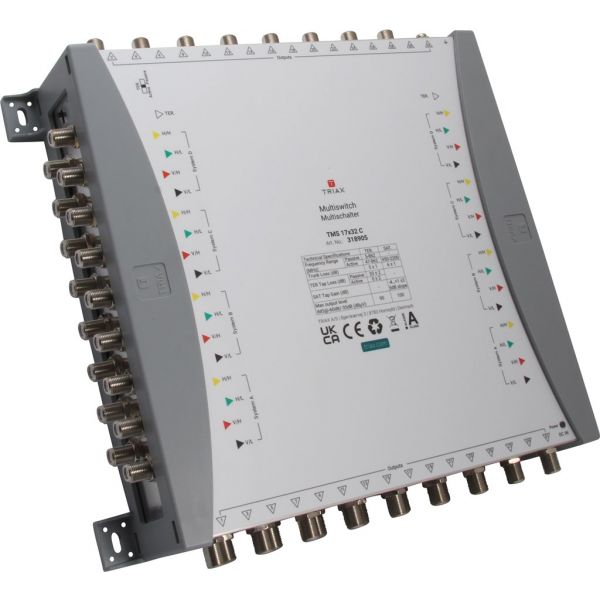

Πολυδιακόπτης cascade 17 in -> 32out TMS 17x32C TRIAX

 Τεχνικές προδιαγραφές

Cascade multiswitch for 4 Satellite positions with 17 inputs and 17 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems.
Available with 32 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

ELECTRICAL
Impedance 75 Ω

CONNECTORS
Connector Type F-female
Connector DC F-female
Number of trunk inputs 16 SAT, 1 TER
Number of trunk outputs 16 SAT, 1 TER
Subscriber outputs 32
Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS
LNB type Quattro
Max. input level - SAT (IMD3 - 35dB) 99 dBµV
Max. input level - TER (IMD3 - 60dB) 90 dBµV
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 90 dBµV
LNB current max. 3000 mA
Switch commands DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE
Frequency range TER Active: 47...862 / Passive: 5...862 MHz
Frequency range SAT 950…2200 MHz

GAIN
Gain - SAT (with 5 dB slope) -4…+1 ± 2 dB
Gain - TER 0 ± 2 dB
LOSS
Tap loss TER 33 ± 2 dB
Insertion loss - trunkline SAT 6 ± 1 dB
Insertion loss - trunkline TER 5 ± 1 dB

ISOLATION
Isolation SAT to TER > 30 dB
Isolation trunk to trunk > 30 dB
Isolation cross polarisation H/V 30 dB
Isolation out-out SAT 30 dB
Isolation out-out TER 25 dB

RETURN LOSS
Return loss SAT inputs >10 dB
Return loss SAT outputs >10 dB
Return loss TER inputs >10 dB
Return loss TER outputs >10 dB
Return loss TAP outputs 10 dB

OPERATIONAL
LINE power DC voltage (max.) 15…20 VDC
LINE power current (max.) 2000 mA
PSU output DC voltage 18 VDC
ESD protection 4KV inputs & sub outputs
DC Current consumption 30mA TER passive 200mA TER active mA
PSU/adapter Art number 318162, 18163, 318164
Max. current to each output (supplied by set top box) <50 mA
Control LEDs Green LED (Power)
Temperature - operating -20…+55 °C
