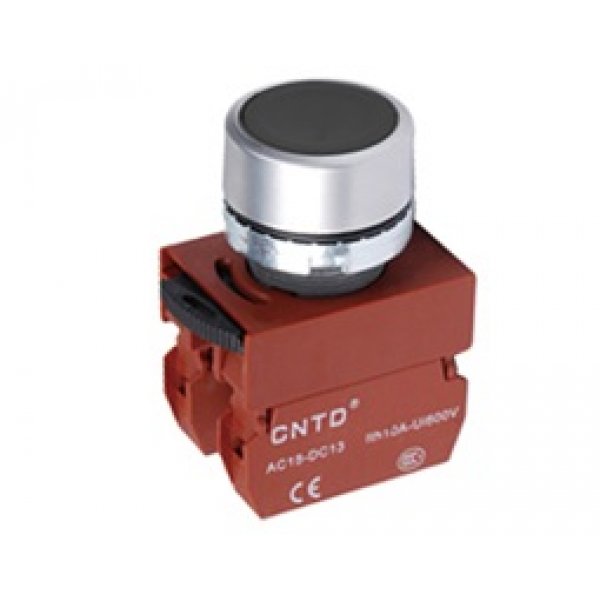

Μπουτόν μαύρο χωνευτό Φ22 START 1NO R2PNF-B CNTD

Characteristics

Standard 3C,CE approved standard
Electrical capacitor Max insulation voltage 600VAC, Max thermal current 10A
Operation AC15类：250VAC/6A、DC13类:250VDC/0.6A
AC15 Type：250VAC/6A、DC13 Type:250VDC/0.6A
Contact resistance Max50MΩ
Insulation strength 2500VAC 50Hz, 1 minute
Insulation resistance 500VDCbelow，100MΩ above
Vibration resistance 10g@40-500Hz
Life Lamp 1,000 hour，LED 100,000 hour
Mechanical life Pushbutton switch：momentary>3,000,000 lasting>500,000
Selector switch：momentary>500,000 lasting>500,000
Key switch：momentary>500,000 lasting>500,000
Emergency switch：>3,00,000
Electrical life Contact block AC15 250VAC/6A >1,000,000
DC13 250VAC/0.6A >1,000,000
Storage temperature -40℃ to 70℃
Operation temperature -25℃ to 70℃
