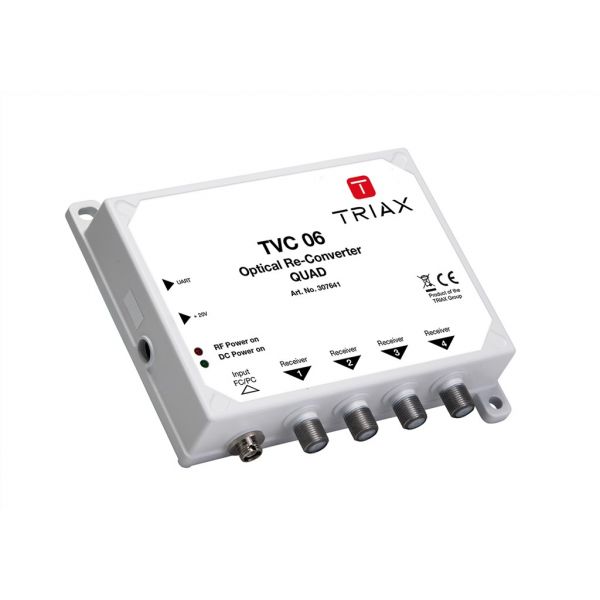

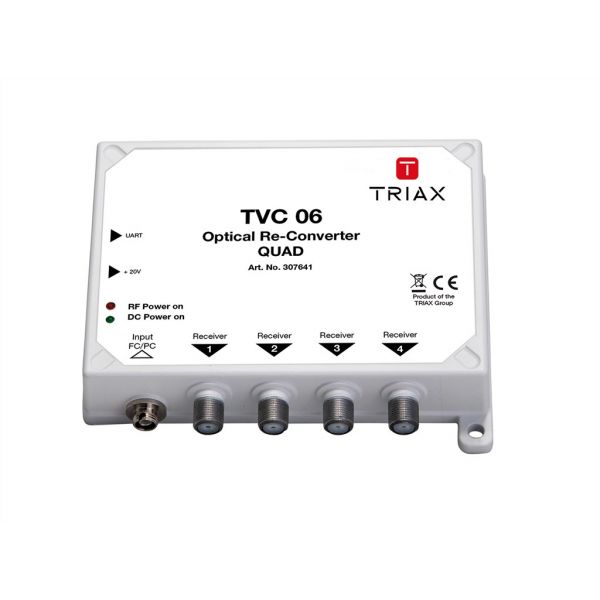

Mini optical Re-converter Quad TVC 06 TRIAX

 Τεχνικές προδιαγραφές

The TVC 06 is a mini optical-to-coax converter, which convert the frequency stacked optical signal sent from the Sat Fibre Optical Headend OTX into four switched universal coax signals like known from a Quad LNB.
The converters also provide a coax DTT/DAB/FM signal diplexed onto each TVQ output if terrestrial antennas are connected to the optical transmitter OTX.

Built in AGC which allows a wide dynamic range of the optical signals on Fibre input with less deviation of the RF output level and signal quality.
Two LED indicators display operational status.
Energy saving by DC power supply via RF outputs from SAT receivers
Optional external power supply for continuous operation available.
Very compact and reliable die-cast housing

OPTICAL CHARACTERISTICS
Optical input power -12.0 until 0.0 dBm
Optical budget for PON (max.) 20 (with OTX) dB
Optical splitting in PON (max.) 32

CHARACTERISTICS
Wavelength 1310/1550 nm
Output level SAT 75 dBµV
Output level TER 65 dBµV
Horizontal High band (4.4 to 5.45 GHz) 1100...2150 (>15.5V 22KHz) MHz
Vertical High band (1.95 to 3.0 GHz) 1100...2150 (>14.5V 22KHz) MHz
Horizontal Low band (3.4 to 4.4 GHz) 950...1950 (>15.5V) MHz
Vertical Low band (0.95 to 1.95 GHz) 950...1950 (>14.5V) MHz
AGC (Automatic Gain Control) 30 dB

CONNECTORS
Output connectors 4xF (4 x SAT/TER)
Connector IN Optical - FC/PC

ELECTRICAL
Impedance 75 Ω

FREQUENCY RANGE
RF frequency range, horizontal polarities 3.4...5.45 GHz
RF frequency range, vertical polarities 0.95...3.0 GHz
TER frequency range DTT 470...854 MHz
TER frequency range DAB 174...240 MHz
TER frequency range FM 87...108 MHz

RETURN LOSS
Return Loss 10 dB

OPERATIONAL
DC Operating voltage 10...20 VDC
DC Current consumption 125 (225mA@10V) mA
PSU/adapter INFO Optional
PSU/adapter Art number 307657 (TPS323-20Vdc/1.2A)
Temperature - operating -10...60 °C

MECHANICAL
Dimensions product (H x D x W) 128x115x27 mm
