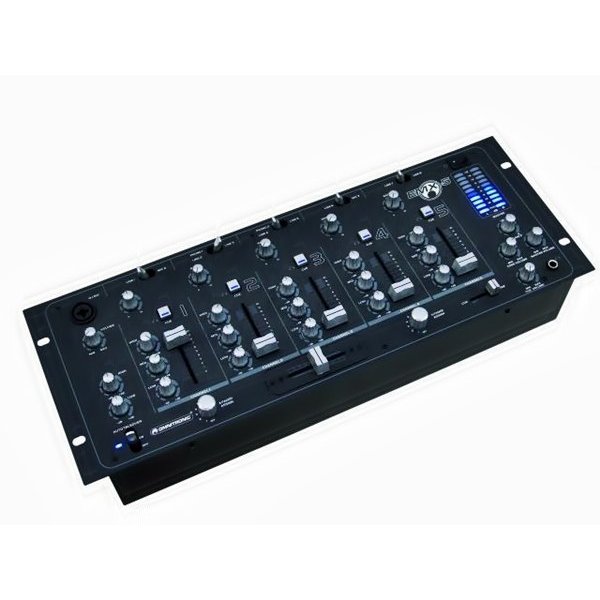

Μικτής ήχου 5 ch 2mic rack 19'' EMX-5 Omnitronic

Πεντακάναλος μίκτης 19" με 6xLine In , 2xPhono/Line In επιλεγόμενα με διακόπτη, 2xMic In, 1XMaster Οut με XLR balanced & RCA unbalanced και διακόπτη επιλογής mono/stereo, 1x zone out με RCA unbalanced, 1xRec out με RCA unbalanced και οι δύο έξοδοι με διαφορετική ρύθμιση στάθμης. Κάθε είσοδος διαθέτει ρύθμιση gain και 3 περιοχών EQ καθώς και 2 περιοχών EQ για το μικρόφωνο.

Professional 5-channel DJ mixer

5 input channels with gain control, 3-band equalizer, cue button and super-smooth channel fader
1 DJ microphone channel with talkover selector and 2-band equalizer
Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output
Replaceable crossfader for crossfading between input channels with assignment switches
10-digit stereo LED level meter, master level control, and balance level control
Adjustable zone output, and record output, independent of the master
Inputs: 6 x line (stereo RCA), 2 x phono/line (stereo RCA), switchable 2 x microphone (6.3 mm jack), 1 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
Outputs: master (3-pin XLR, stereo RCA), zone and record (both stereo RCA)
Operation via supplied power unit
Rack installation, 4 U


Power supply:230 V AC, 50 Hz ~,
via supplied power unit
Power consumption:30 W
Inputs:
DJ MIC (front):combined XLR (3-pin)/ 6.3 mm jack (1/4) (bal.)
MIC 1,2 (rear):6.3 mm jack (1/4) (bal.)
Impedance:1 kohms
Minimum input voltage:1.5 mV RMS
LINE 1-5:stereo RCA
Impedance:27 kohms
Minimum input voltage:150 mV RMS
PHONO 1,2:stereo RCA
Impedance:47 kohms
Minimum input voltage:3 mV RMS
Outputs:
MASTER:stereo RCA, stereo XLR (3-pin)
ZONE:stereo RCA
Impedance:400 ohms
Output voltage:1 V RMS/ 0 dB
REC:stereo RCA
Impedance:5 kohms
Output voltage:225 mV RMS
Headphones:6.3 mm stereo jack (min. 16 ohms)
Tone control (DJ MIC):
1 x High:-12 dB to +12 dB/ 1 kHz, ?1 dB
1 x Low:-12 dB to +12 dB/ 1 kHz, ?1 dB
Tone control (channels 1-5):
5 x High:
