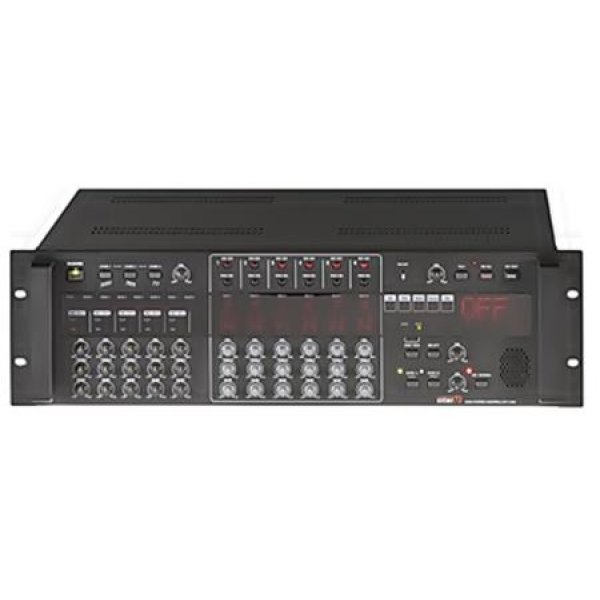

MATRIX 8ch. x6 OUT C-500 INTER-M

*8 BGM Input / 6BUS Output Matrix

*5 MIC Input

*Built-in Monitoring Speaker

*Clear LED Status Indicators

*Priority Broadcasting Options(EM→Fire→Timer→Paging→RM1-4→BGM→Local)

*Remote Operation Control Via RS 232C

*Built-in EM Microphone

*Power Source: 100~120VAC or 220~240VAC ; 50/60Hz, DC 24V(Supplied AC mains transformer depends on country requirements)

*Power Consumption: 22W

*Weight: 3.8kg/9.3Ib

*Dimensions(W×H×D): 482×132×380mm / 19×5.2×15in



C-500
Input Sensitivity

BGM Input 1~8(Unbalanced) -10dBV
BGM Input 1~2(Balanced) -10dBV
MIC Input 1~5(MIC) -55dBV
MIC Input 1~5(Line) -10dBV
EM MIC Input -30dBV
PTT MIC Input -36dBV
Page Input(Balanced) -10dBV
Timer Input(Balanced) -10dBV

Total Harmonic Distortion

BGM Input <0.1%
MIC Input <0.2%
Signal to Noise
BGM Input >75dB
MIC Input >55dB
Audio Link Out(Balanced) 0dBV
Frequency Response(±3dB) MIC: 100Hz~10kHz /BGM, Page, Timer : 50Hz~18kHz
Priority EM>Fire>Timer>Paging>RM1>RM2>RM3>RM4>LM>BGM-MIC

Serial Interface

C-500 to Z-500 RS-422
C-500 to V-500 RS-422
C-500 to PC RS-232C

Power Source

AC 100~240C 50V/60Hz, DC 24V
Power Consumption 22W
Operating Temperature -10℃ ~40℃
Operating Humidity0%~90%
Weight(SET) 6.9kg/15.2Ib
Dimensions(SET) 482(W) × 132(H) × 380(D)mm / 19(W) × 5.2(H) × 15(D)in
