Κεραία οροφής GSM/UMTS/LTE shark 7727095 Calearo
-31%
Αναμένεται Σύντομα
Προβολή

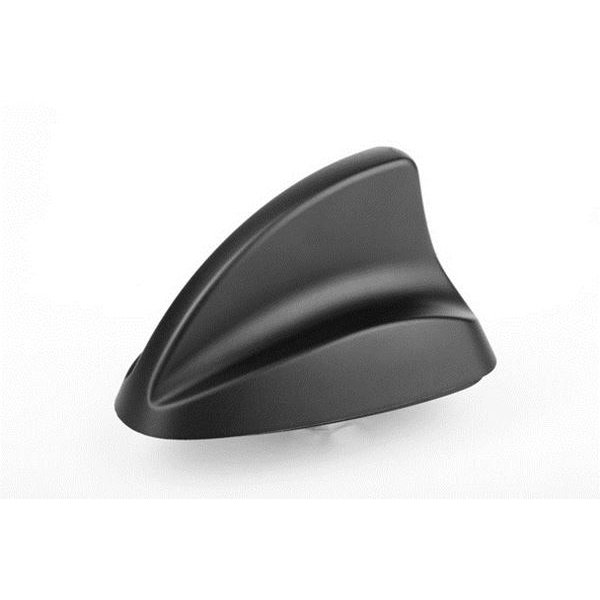

Shark 2 multi-function antenna with LTE / GPS.
Technical Data:
GSM Cable : RG58 L = 5 m / Z = 50 Ohm / C = 101 pF/m;
GPS Cable : RG174 L = 5 m / Z = 50 Ohm / C = 100 pF/m;
LTE Connector : FME F;
GPS Connector : SMB F;
GPS Power : Phantom 3-5 volt;
Frequency band : LTE 698<>960/1710<>2690MHz/ GPS 1575,42 ± 1,023 MHz
Gain : LTE 0 dB / GPS = 27 dBi/
Power consumption : GPS 30 mA max;
Overall dimension (LxBxH) : 11,7x7,6x6,2cm;
On roof mounting : original hole or Ø 19 mm hole;
VSWR : LTE: < 2,5:1 / GPS: ≤ 2:1;
APPLICATION:
Universal.
SPARE PARTS:
LTE Cable : cod. 7581116
GPS Cable: cod. 7581103
Technical Data:
GSM Cable : RG58 L = 5 m / Z = 50 Ohm / C = 101 pF/m;
GPS Cable : RG174 L = 5 m / Z = 50 Ohm / C = 100 pF/m;
LTE Connector : FME F;
GPS Connector : SMB F;
GPS Power : Phantom 3-5 volt;
Frequency band : LTE 698<>960/1710<>2690MHz/ GPS 1575,42 ± 1,023 MHz
Gain : LTE 0 dB / GPS = 27 dBi/
Power consumption : GPS 30 mA max;
Overall dimension (LxBxH) : 11,7x7,6x6,2cm;
On roof mounting : original hole or Ø 19 mm hole;
VSWR : LTE: < 2,5:1 / GPS: ≤ 2:1;
APPLICATION:
Universal.
SPARE PARTS:
LTE Cable : cod. 7581116
GPS Cable: cod. 7581103
