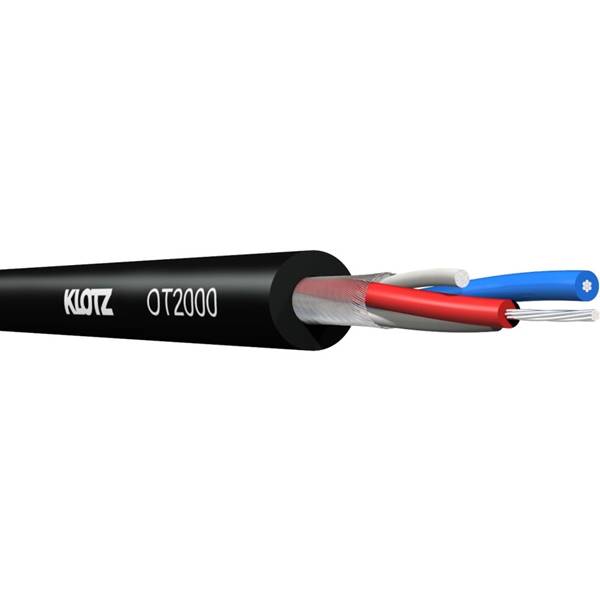

Καλώδιο DMX 512 2 x0,22mm 2 ζευγών OT2000 Klotz

 Τεχνικές προδιαγραφές

OT2000 FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE For DMX512 data, low fire hazard

Foil screened, 110 ohm, single-pair installation cable, specifically for DMX512 lighting-control applications, designed to meet RS485 data cable specification.

Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene).
The overall jacket is bonded to the screen tape so that one stripping action removes jacket and screen, leaving the signal wires and earth wire free for further processing.

Wiring specifications for many public buildings call for LFH cables to be used in certain areas, notably in corridors etc. Under combustion circumstances, LFH cables have a significantly reduced smoke emission, and the gaseous products contain no toxic halogens.

Technical Specification:
Conductor: 7/0.2mm (0.5mm sq.) tinned copper wire
Insulation: Foamed polypropylene, black, red, O.D. 2.4mm
Screen: Bondable aluminium/polyester tape with 16/0.2mm tinned copper drain wire
Jacket: Low fire hazard compound, O.D. 6.5mm, black, printed with metre markings
Impedance: 110 ohms +/- 15ohms
Capacitance: 52pF/metre core to core
Conductor resistance: 80 ohms/km
Insulation test voltage: 500V
Weight: 5.396kg/100m


Συσκευασία ρολό 100 μέτρων , πωλείται ανα 1 μέτρο
