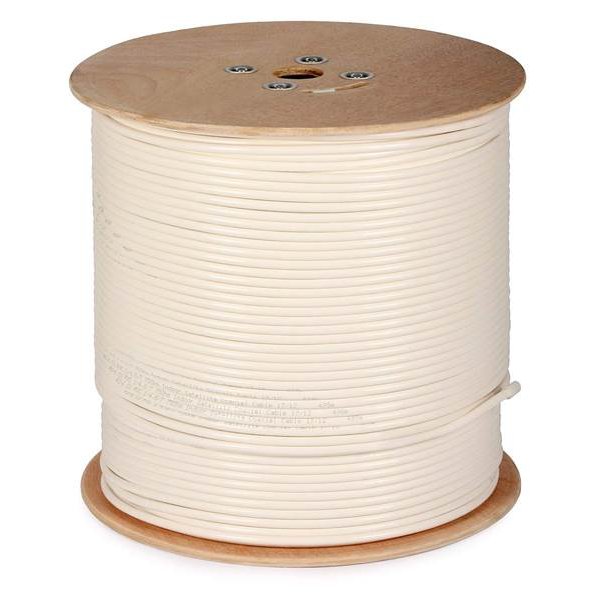

Καλώδιο 75ohm καρούλι 500m 96x0.12mm SAT-5 LINAN

Specifications

75 ohm coaxial cable for satellite :
1: CE ROHS Approved
2: Good Quality Low Prices
3:Short delivery time.

75 ohm coaxial cable for satellite Specifications:

1)Conductor: 1.02mmBC, CCS
2)Insulation:PE/FPE
3)Shield : Al-Foil/ Bonded Al-Foil
4)Braiding: BC/CCA/AL
5)Jacket : 6.85mmPVC

Description:

Items RG6 Coaxial Cable

Model SAT-5

Inner conductor 1.02mm Bare Copper/CCS
insulator 4.57mm Solid PE/Foam PE
Braiding Bare Copper/CCA /AL
Cable external diameter 6.85±0.1mm PE/PVC Jacket
Impedance 75±3 Ohm
Capacitance 54 pf/m±3
Velocity of Propagation(%) 85
Frequency Maximum(dB/100ft) Maximum(dB/100m) Attenuation @68°F(20degree)

55MHZ 1.6 5.25
187MHZ 2.85 9.35
300MHZ 3.55 11.64
450MHZ 4.40 14.43
750MHZ 5.65 18.54
865MHZ 6.10 20.01
1000MHZ 6.55 21.49
1200MHZ 7.98 26.16
1450MHZ 8.46 27.73
1800MHZ 9.50 31.35
2200MHZ 9.73 31.92

Συσκευασία
-500m στροφείο, πωλείτα ανα 1 μέτρο.
