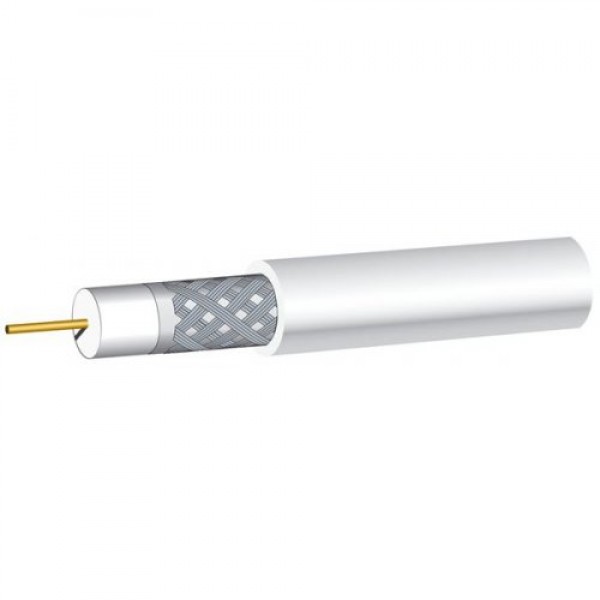

Καλώδιο 75ohm καρούλι 500m 64x0.12mm SAT-3 LINAN

Specifications

Designed for digital HDTV,CATV,CCTVand SATV Applications
1.02mm Copper ;64 wires braid ; PVC jacket , Rohs\CE

specification

- 18awg\1.02mm Bare Copper center conductor ;

- 4.6mm gas-injected polyethylene dielectric ;

- laminated Al-pet-Al foil bonded to the dielectric ;

- 0.12mm Aluminim wire braid , 64 wires , 60% coverage ;

- 6.81mm virgin pvc jacket (Rohs\CE )

- F type connectors available

Characteristics
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [68 F. (20 C) ] dB/100meters
5MHz: 1.90dB 500MHz: 15.09dB
55MHz: 5.25dB 600MHz: 16.73dB
83MHz: 6.40dB 750MHz: 18.54dB
187MHz: 9.35dB 1000MHz: 21.49dB
211MHz: 10.00dB 1450MHz: 26.16dB
250MHz: 10.82dB 1800MHz: 27.73dB
350MHz: 12.63dB 2100MHz: 31.15dB
400MHz: 13.61dB 2250MHz: 34.03dB

Συσκευασία
-500m στροφείο, πωλείτα ανα 1 μέτρο.
