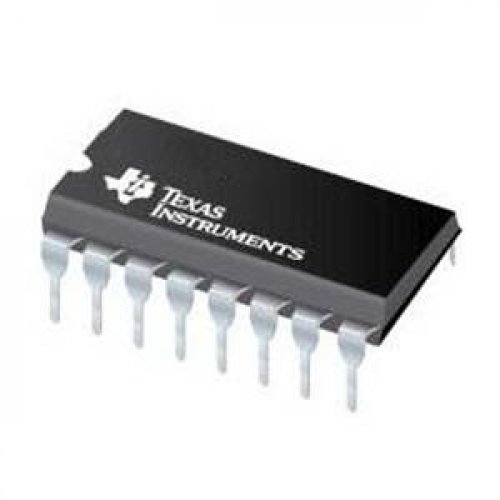

IC TL494 IN PDIP-16 switching controllers PWM controller Texas Instruments
-25%
Προβολή
Specifications
Topology: Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs: 2 Output
Switching Frequency: 300 kHz
Duty Cycle - Max: 45 %
Output Voltage: 40 V
Output Current: 200 mA
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Fall Time: 40 ns
Height: 4.57 mm
Length: 19.3 mm
Minimum Operating Temperature: - 40 C
Operating Temperature Range: - 40 C to + 85 C
Rise Time: 100 ns
Topology: Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs: 2 Output
Switching Frequency: 300 kHz
Duty Cycle - Max: 45 %
Output Voltage: 40 V
Output Current: 200 mA
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Fall Time: 40 ns
Height: 4.57 mm
Length: 19.3 mm
Minimum Operating Temperature: - 40 C
Operating Temperature Range: - 40 C to + 85 C
Rise Time: 100 ns
- Κατασκευαστής: Texas Instruments
- Κωδικός Προϊόντος: 014397
- Διαθεσιμότητα: Διαθέσιμο
- Στο κατάστημα: 2,04€
- Τιμή web: 1,53€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 1,23€
Χρειάζεσαι βοήθεια; +30 26510 24011
Αναμένεται Σύντομα

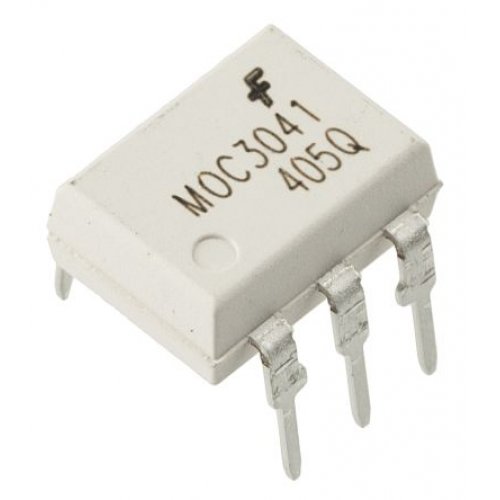

Ref Code: 011067
Manufacturer: Fairchild Semiconductor
Output Device: PhotoTriac
Isolation Voltage: 5250 Vrms
For..
1,16€
Χωρίς ΦΠΑ:0,94€
Χωρίς ΦΠΑ:0,94€
Αναμένεται Σύντομα

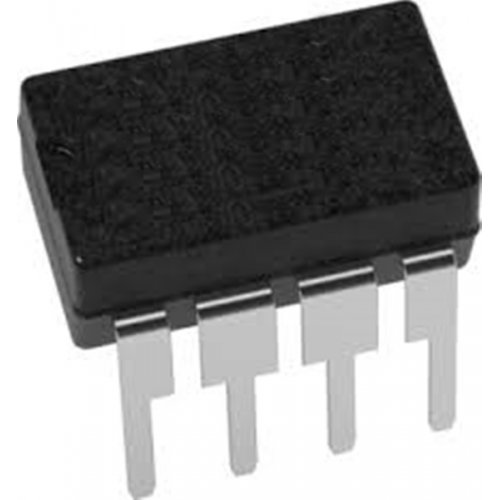

Ref Code: 010294
