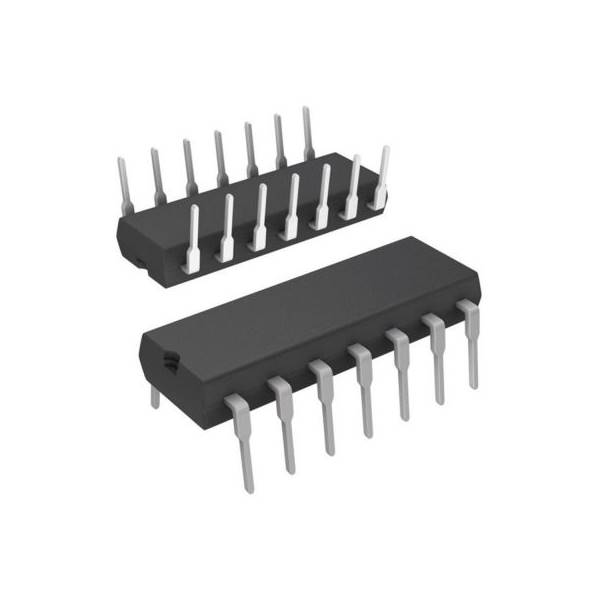

IC Inverters Hex Inv w/HV Output PDIP-14 SN74LS04N Texas Instruments
Προβολή
Specifications
Number of Circuits: 6 Circuit
Logic Family: LS
Logic Type: Bipolar
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Function: Inverter
High Level Output Current: - 0.4 mA
Input Type: TTL
Low Level Output Current: 8 mA
Minimum Operating Temperature: 0 C
Number of Output Lines: 6 Output
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Output Type: CMOS
Propagation Delay Time: 22 ns
Unit Weight: 1 g
- Κατασκευαστής: Texas Instruments
- Κωδικός Προϊόντος: 006219
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 1,55€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 1,25€
