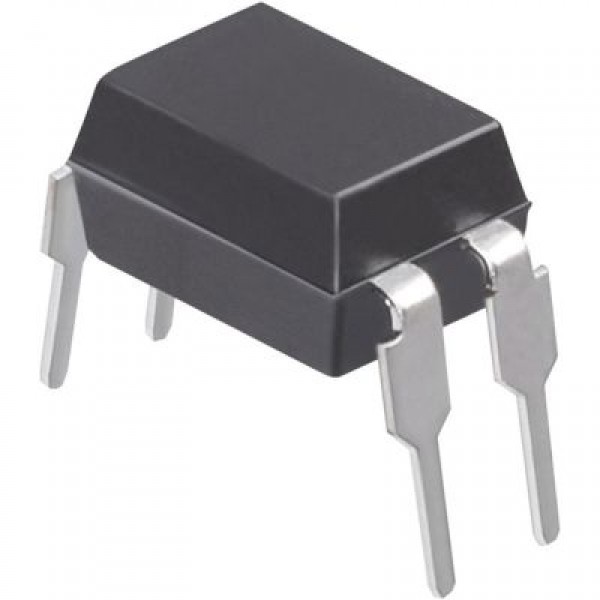

IC Optocouplers TLP521-1
Αναμένεται Σύντομα
Προβολή
Brand: Toshiba
Input Type: AC/DC
Maximum Collector Emitter Voltage: 55 V
Maximum Collector Emitter Saturation Voltage: 0.4 V
Isolation Voltage: 2500 Vrms
Current Transfer Ratio: 50 % to 150 %
Maximum Forward Diode Voltage: 1.3 V
Maximum Input Diode Current: 25 mA
Maximum Collector Current: 10 mA
Maximum Power Dissipation: 250 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
Package/Case: DIP-4
Packaging: Tube
Forward Current: 16 mA
Maximum Fall Time: 2 us
Maximum Reverse Diode Voltage: 5 V
Maximum Rise Time: 2 us
Number of Channels: 1 Channel
Output Device: NPN Phototransistor
Input Type: AC/DC
Maximum Collector Emitter Voltage: 55 V
Maximum Collector Emitter Saturation Voltage: 0.4 V
Isolation Voltage: 2500 Vrms
Current Transfer Ratio: 50 % to 150 %
Maximum Forward Diode Voltage: 1.3 V
Maximum Input Diode Current: 25 mA
Maximum Collector Current: 10 mA
Maximum Power Dissipation: 250 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
Package/Case: DIP-4
Packaging: Tube
Forward Current: 16 mA
Maximum Fall Time: 2 us
Maximum Reverse Diode Voltage: 5 V
Maximum Rise Time: 2 us
Number of Channels: 1 Channel
Output Device: NPN Phototransistor
