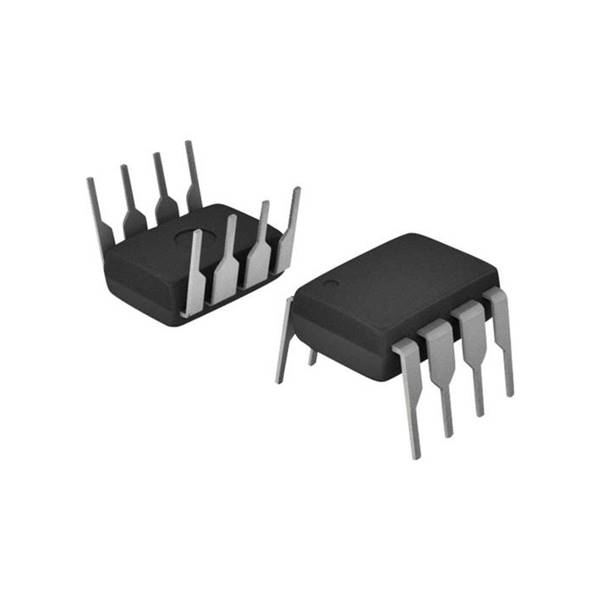

IC Operational Amplifier PDIP-8 LM741Cp
Προβολή
Specifications
Package/Case: PDIP-8
Number of Channels: 1 Channel
Supply Voltage - Max: 44 V
GBP - Gain Bandwidth Product: 1 MHz
Output Current per Channel: 25 mA
SR - Slew Rate: 0.5 V/us
Vos - Input Offset Voltage: 3 mV
Supply Voltage - Min: 10 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 80 nA
Operating Supply Current: 1.7 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 70 dB to 90 dB
en - Input Voltage Noise Density: 30 nV/sqrt Hz
Height: 3.3 mm
Length: 9.27 mm
