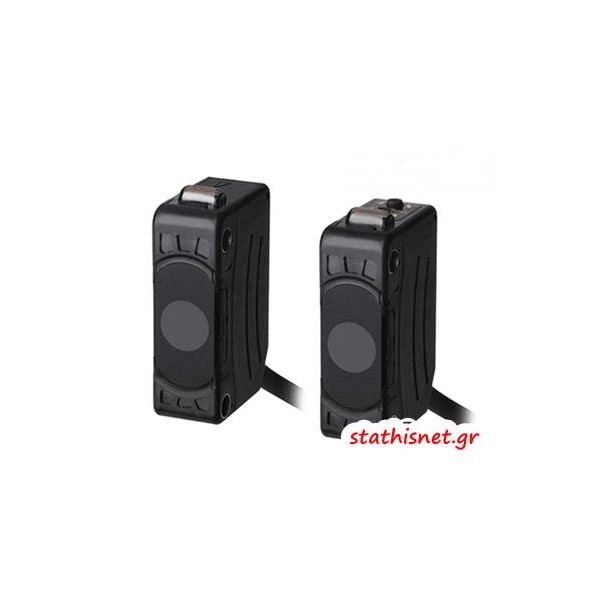

Φωτοκύτταρο miniature παραλληλόγραμμα με πομπό - δέκτη PNP 15m 12-24V DC BJ15M-TDT-P Autonics

Specification

BJ15M-TDT-P

Sensing type : Through-beam type
Sensing distance : 15m
Sensing target : Opaque material of min. Ø12mm
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power voltage : 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : PNP open collector

Data sheet

Sensing type Through-beam type
Sensing distance 15m
Sensing target Opaque material of min. Ø12mm
Light source Infrared LED(850nm)
Response time Max. 1ms
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 20mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output PNP open collector
Connection type Cable type(Ø3.5, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃
Protection structure IP65
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH

Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,
Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,

Sleeve: Brass, Ni-plate
Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver.

Weight Approx. 115g (approx. 90g)
