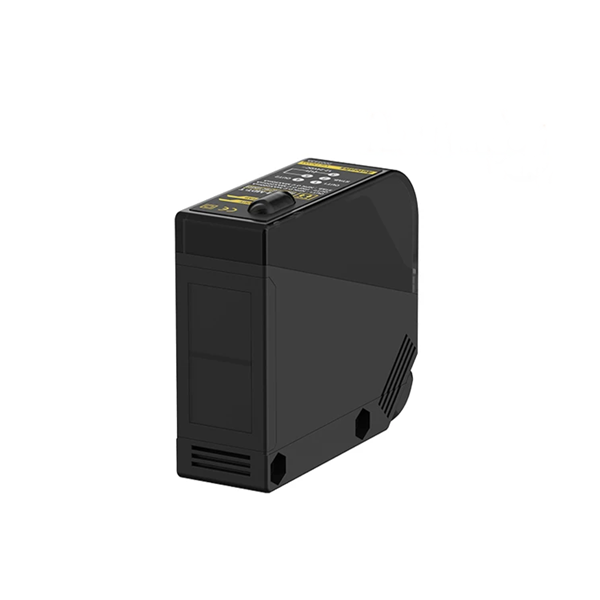

Φωτοκύτταρο miniature παραλληλόγραμμα με αυτοανάκλαση + Timmer NPN/PNP 700mm 24-240V AC BX700-DFR-T Autonics

Specification

BX700-DFR-T

Sensing type : Diffuse reflective type
Sensing distance : 700mm
Sensing target : Opaque, Translucent material
Light source : Infrared LED(940nm)
Response time : Max. 20ms
Power voltage : 24-240VAC~ ±10% 50/60Hz, 24-240VDC specialstring ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : Relay

Data sheet

Sensing type Diffuse reflective type
Sensing distance 700mm
Sensing target Opaque, Translucent material
Light source Infrared LED(940nm)
Response time Max. 20ms
Power voltage 24-240VAC~ ±10% 50/60Hz, 24-240VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 3VA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output Relay
Timer function Timer Function
Connection type Terminal block type
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 55℃, storage: -25 to 70℃
Protection structure IP65(IEC standard)
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% at sensing distance
Material Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,
Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts

Weight Approx. 116g
