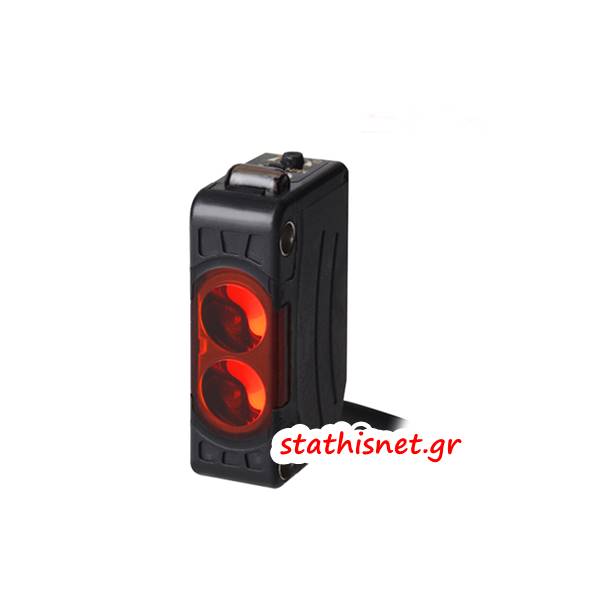

Φωτοκύτταρο miniature παραλληλόγραμμα με αυτοανάκλαση PNP 300mm 12-24V DC BJ300-DDT-P Autonics

Specification


BJ300-DDT-P

Sensing type : Diffuse reflective type
Sensing distance : 300mm
Sensing target : Opaque, Translucent material
Light source : Red LED(660nm)
Response time : Max. 1ms
Power voltage : 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : PNP open collector

Data sheet

Sensing type Diffuse reflective type
Sensing distance 300mm
Sensing target Opaque, Translucent material
Light source Red LED(660nm)
Response time Max. 1ms
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output PNP open collector
Connection type Cable type(Ø3.5, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃
Protection structure IP65
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% of sensing distance

Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,
Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,

Sleeve: Brass, Ni-plate
Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver

Weight Approx. 70g (approx. 45g)
