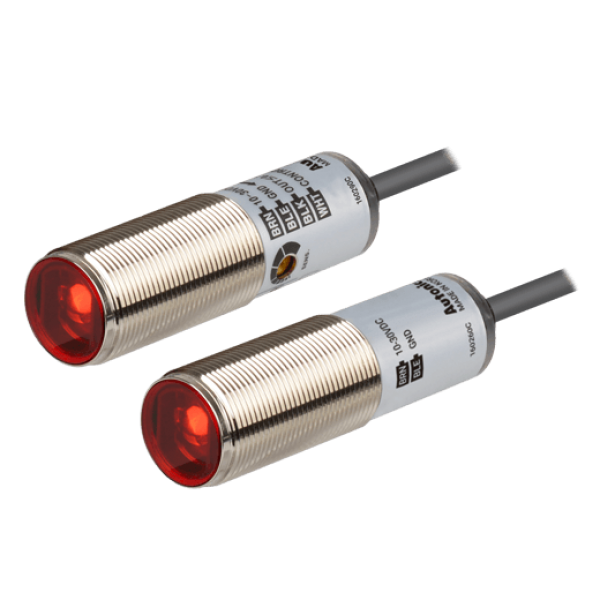

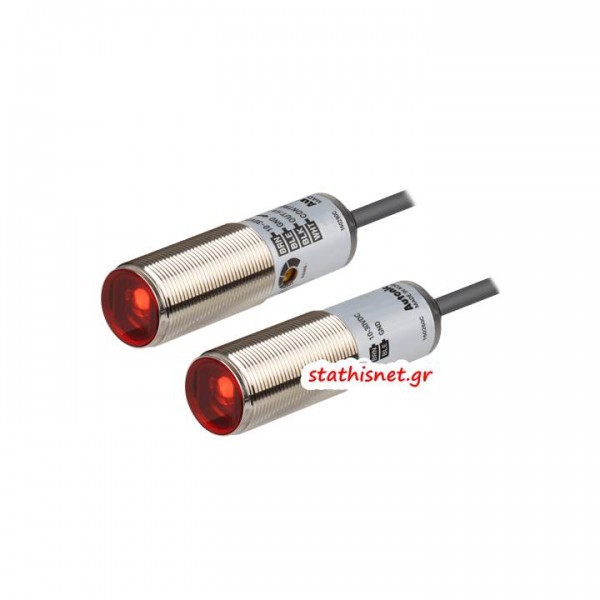

Φωτοκύτταρο κυλινδρικό Ø18 πομπού - δέκτη NPN 20m 12-24V DC μεταλλικό BR20M-TDTD Autonics

Specification

BRQM20M-TDTA

Sensing type : Through-beam type
Sensing distance : 20m
Sensing target : Opaque material of min. Ø7mm
Light source : Red LED(660nm)
Response time : Max. 1ms

Data sheet

Sensing type Through-beam type
Sensing distance 20m
Sensing target Opaque material of min. Ø7mm
Light source Red LED(660nm)
Response time Max. 1ms
Power supply 10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 20mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by control wire)
Control output NPN open collector
Connection type Cable type(Ø4, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃
Protection structure IP67(IEC standard)
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material ㆍCase: brass, Ni-plate
ㆍLens, Lens cover: polymethyl methacrylate acrylic

Weight Approx. 220g (approx. 140g)
