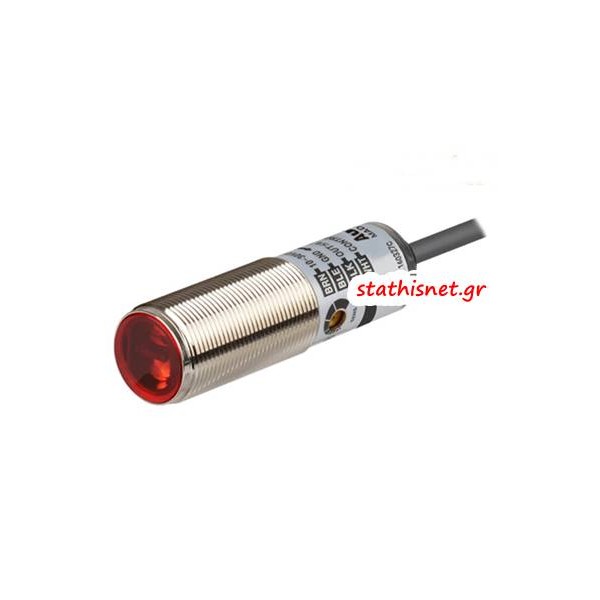

Φωτοκύτταρο κυλινδρικό Ø18 NPN 400mm 12-24V DC μεταλλικό BRQM400-DDTA Autonics

Specification

BRQM400-DDTA

Sensing type : Diffuse reflective type
Sensing distance : 400mm
Sensing target : Opaque, Translucent material
Light source : Red LED(660nm)
Response time : Max. 1ms

Data sheet

Sensing type Diffuse reflective type
Sensing distance 400mm
Sensing target Opaque, Translucent material
Light source Red LED(660nm)
Response time Max. 1ms
Power voltage 10-30VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by control wire)
Control output NPN open collector
Connection type Cable type(Ø4, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃
Protection structure IP67(IEC standard)
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% at rated sensing distance
Material ㆍCase: brass, Ni-plate
ㆍLens, Lens cover: polymethyl methacrylate acrylic

Weight Approx. 150g(approx. 70g)
