Ενεργός διακλαδωτής TAP-OFF πολυδιακόπτη 5 εισόδων TMST 5x2 TAP TRIAX

 Τεχνικές προδιαγραφές

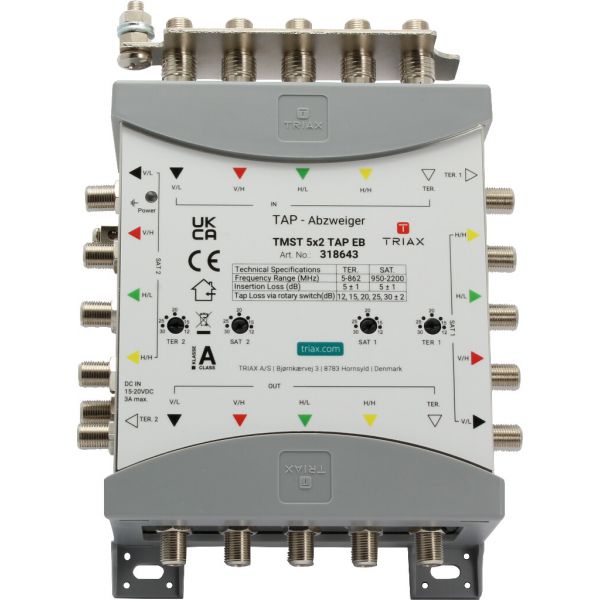

The TMST 5x2 TAP EB is a 5-input two-way tap designed to be used in cascade systems to split the received signals to several trunk lines.
Attenuation of 12-30dB can be selected using a rotary attenuator to adjust the tap output to the required signal level.
Supplied with earth bars.
Power can be inserted on the DC input, or line powered via any of the Sat ports.

CONNECTORS
Number of trunk inputs 4 SAT, 1 TER
Number of trunk outputs 4 SAT, 1 TER
Number of inputs 5
Number of outputs 2 x 4 SAT, 1 TER
Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER
Connector Type F-female
Connector DC F-female

FREQUENCY RANGE
Frequency range TER 5…862 MHz
Frequency range SAT 950…2200 MHz

LOSS
Tap loss SAT Rotary switch 12… 30 ± 2dB (12, 15, 20, 25, 30dB) dB
Tap loss TER Rotary switch 12… 30 ± 2dB (12, 15, 20, 25, 30dB) dB
Insertion loss - SAT 5 ± 1 dB
Insertion loss - TER 5 ± 1 dB

ELECTRICAL
Impedance 75 Ω

RETURN LOSS
Return loss SAT > 10 dB
Return loss TER > 10 dB

OPERATIONAL
DC Current consumption 60 mA
LINE power DC voltage (max.) 15…20 VDC
LINE power current (max.) 2000 mA
Control LEDs Green LED (Power)
Temperature - operating -20…+55 °C
