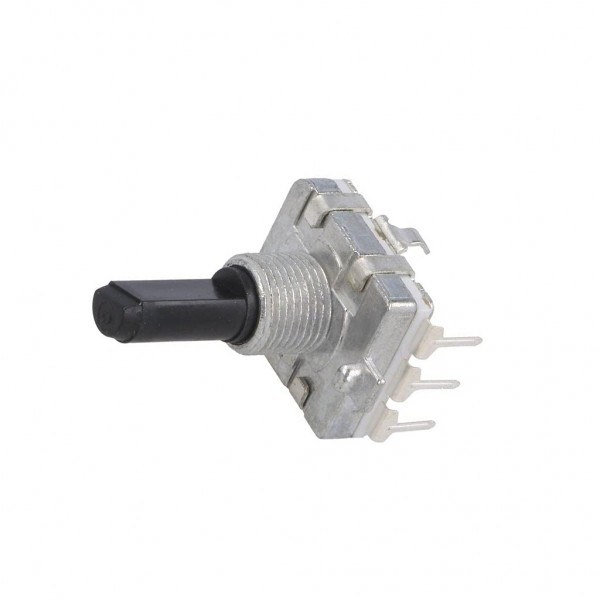

Encoder incremental THT Pos 24 two phase A and B EC16E20-24P24C SR Passives
Αναμένεται Σύντομα
Προβολή
Specification
Type of encoder incremental
Mounting THT
Resolution 24παλμοστροφών.
Number of positions 24
Output signal two phase A and B
Mechanical durability 50000 cycles
Operating voltage 5V DC
Max. operating current 5mA
Shaft surface D spring
Shaft length 13mm
Shaft diameter 6mm
Cut depth 1.5mm
Thread length 7mm
L shaft length 20mm
Spatial orientation 1 vertical
Terminal pitch 2.54mm
Additional information
Βάρος : 7.02 g
Body dimensions 16x17.2x6.5mm
