Access point Express UniFi Controller switch 2xGigabit Wi-Fi 6 AP UX Ubiquiti

Specifications

• Mechanical
- Dimensions: 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
- Weight: 302 g (10.7 oz)
- Enclosure material: Polycarbonate

• Hardware
- Management interface
- Ethernet
- Bluetooth

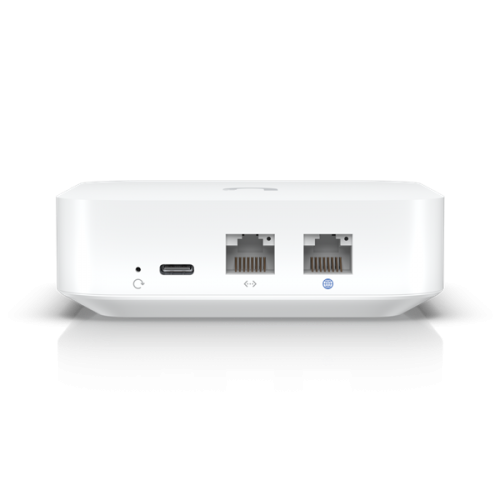

• Networking interface
- LAN:
(1) GbE RJ45 port

- WAN:
(1) GbE RJ45 port
- Power method: USB type C (5V DC/3A)
- Max. power consumption: 10W

• Max. TX power
- 2.4 GHz: 22 dBm
- 5 GHz: 25 dBm

• MIMO
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)

• Throughput rate
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 2.4 Gbps

• Antenna gain
- 2.4 GHz:
- 5 GHz: 5.15 dBi

• Antennas
- (2) Internal 2.4G/5G WiFi dual-band antenna
- (1) Internal 2.4G single-band BT antenna

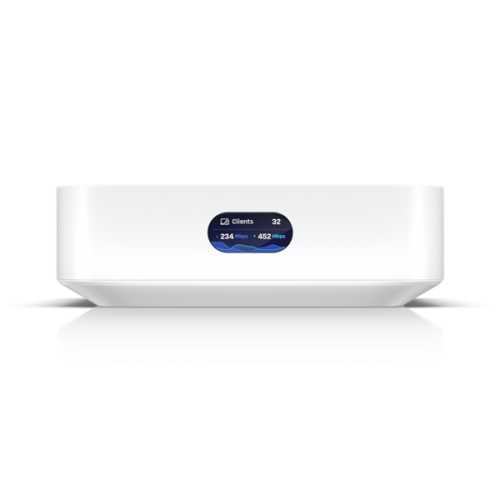

- LCM display: 0.96" status display
- Button: Factory reset
- Operating temperature: -10 to 45° C (14 to 113° F)
- Operating humidity: 5 to 95% noncondensing

• Software
- WiFi standards: 802.11a/b/g/n/ac/ax
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: Console mode: 3 per band
- Standard AP: 8 per band
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 60+
- Zero wait DFS: Yes

• Supported Data Rates
- 802.11a:6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

• Application Requirements
- UniFi Network: Version 8.0.7 and later

- Certifications: CE, FCC, IC
