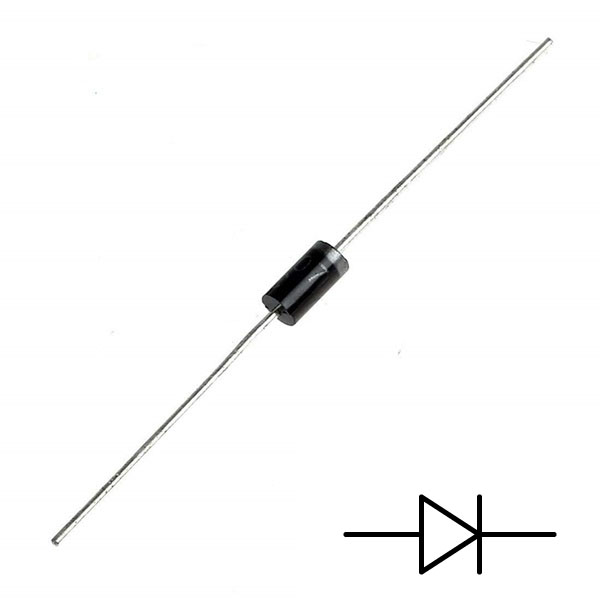

Δίοδος 400V 1A rectifier DO-41 1N4004

Δίοδος 400V 1A rectifier DO-41 1N4004

Specifications:

Series: 1N4004
Mounting Style: Through Hole
Termination Style: Through Hole
Package/Case: DO-41-2
Vr - Reverse Voltage: 400 V
If - Forward Current: 1 A
Type: Standard Recovery Rectifiers
Configuration: Single
Vf - Forward Voltage: 1.1 V
Max Surge Current: 30 A
Ir - Reverse Current: 10 uA
Pd - Power Dissipation: 3 W
Recovery Time: -
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C

Height: 2.72 mm
Length: 5.21 mm
Width: 2.72 mm

Unit Weight: 137 mg
  • Κωδικός Προϊόντος: 032978
  • Διαθεσιμότητα: Διαθέσιμο
  • Τιμή web: 0,07€
  • (H τιμή συμπεριλαμβάνει ΦΠΑ)
  • Χωρίς ΦΠΑ: 0,06€

Χρειάζεσαι βοήθεια;  +30 26510 24011
