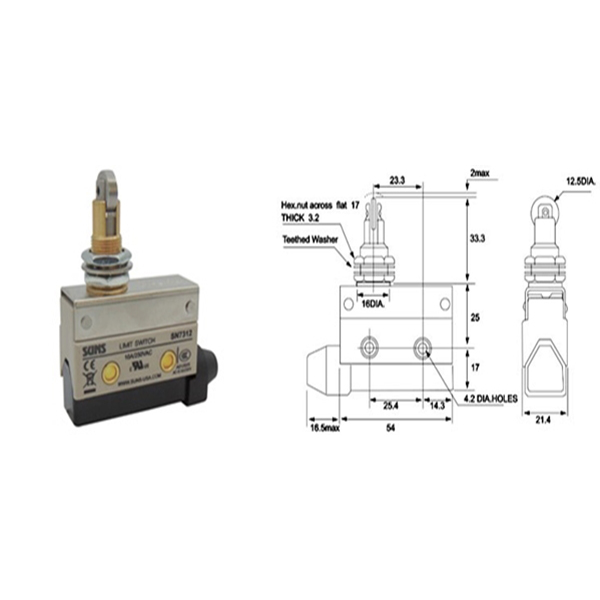

Διακόπτης τερματικός mini limit με ροδάκι σταθερό κάθετο & παξιμάδι SPDT 10A 250V AC IP64 SN7312 Suns

Specifications:
Operating Speed: 0.05mm-0.5m/sec (panel mount plunger)
Operating Frequency: Mechanical:120ops/min
Electrical:30 ops/min
Contact Resistance: <15mΩ (initial value)
Insulation Resistance: >100MΩ min at 500V DC
Rated Current/Voltage: 10A/250VAC
Operating Temperature: -20 ~ +60°(-4~+140°F)
Dielectric Strength: 1000V AC (For 1 min)between current carrying parts
2000V AC (For 1 min)between non-current carrying parts
Service Life: Mechanically 1.0x107(operations)
Electrically 5 x105(operations)
Humidity: <95%RH
Weight: ~60g
Degree of Protection: IP64(IP67 for model with -w suffix)

Definitions of Operating Characteristics:
OF:Operating Force
RF:Releasing Force
OT:Overtravel
TT:Total Travel
PT:Pretravel
MD:Movement Differential
OP:Operating Position
PO:Travel to Positive Opening

SN7312:
Operating Characteristics:
OFmax: 5.88N
RFmin: 0.98N
PTmax: 2.0mm
OTmin: 6.0mm
MDmax: 0.8mm
FPmax: 35.3mm
OP: 33.3±1.2mm
