Διακόπτης Τερματικός Micro Switch 15A 250V AC AM-1701 (Z-15GW) Suns
Προβολή
Characteristics:
● Contact resistance: 25mΩ maximum (initial) ● Insulation resistance: 100mΩ minimum @ 500VDC
● Dielectric strength: 1,000AC for 1 minute ● Service life: Mechanically 15 millions ops
● Operating Temperature: -10~80ºC (14~176ºF) ● Service life: Electrically 500,000 ops
10A@250VAC IP63 bakelite 49.2x17.5x29.4mm (1.94x0.69x1.16")

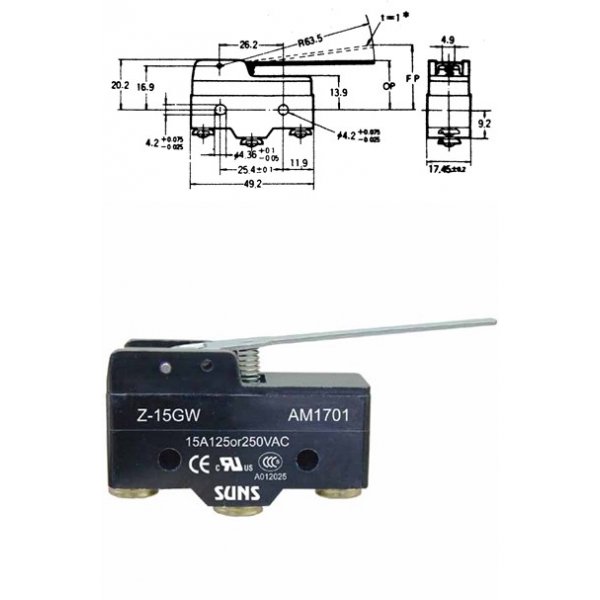

Operating Characteristics
● OFmax 0.69N
● RFmin 0.12N
● PTmax 10mm
● OTmin 5.6mm
● MDmax 2mm
● FP 28.2mm
● OP 19.1+0.7mm
● Contact resistance: 25mΩ maximum (initial) ● Insulation resistance: 100mΩ minimum @ 500VDC
● Dielectric strength: 1,000AC for 1 minute ● Service life: Mechanically 15 millions ops
● Operating Temperature: -10~80ºC (14~176ºF) ● Service life: Electrically 500,000 ops
10A@250VAC IP63 bakelite 49.2x17.5x29.4mm (1.94x0.69x1.16")
Operating Characteristics
● OFmax 0.69N
● RFmin 0.12N
● PTmax 10mm
● OTmin 5.6mm
● MDmax 2mm
● FP 28.2mm
● OP 19.1+0.7mm
