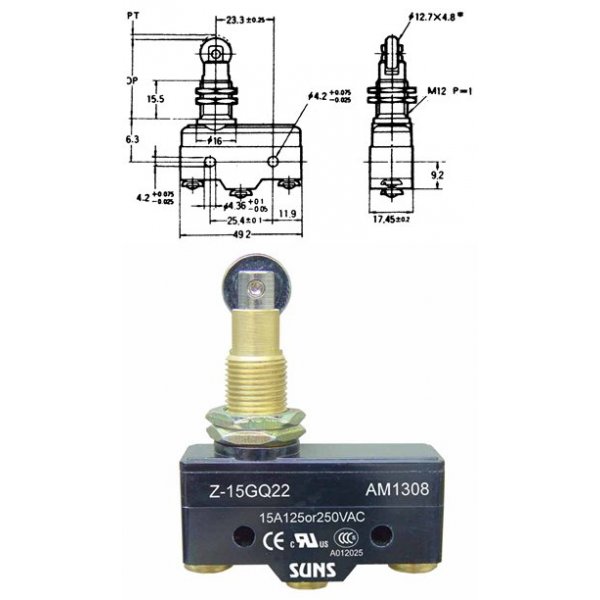

Διακόπτης Τερματικός Micro Switch 15A 250V AC AM-1308
Προβολή
Characteristics:
● Contact resistance: 25mΩ maximum (initial) ● Insulation resistance: 100mΩ minimum @ 500VDC
● Dielectric strength: 1,000AC for 1 minute ● Service life: Mechanically 15 millions ops
● Operating Temperature: -10~80ºC (14~176ºF) ● Service life: Electrically 500,000 ops
10A@250VAC IP63 bakelite 49.2x17.5x29.4mm (1.94x0.69x1.16")
Operating Characteristics
● OFmax 3.43N
● RFmin 1.12N
● PTmax 0.4mm
● OTmin 3.58mm
● MDmax 0.05mm
● OP 33.4+1.2mm
● Contact resistance: 25mΩ maximum (initial) ● Insulation resistance: 100mΩ minimum @ 500VDC
● Dielectric strength: 1,000AC for 1 minute ● Service life: Mechanically 15 millions ops
● Operating Temperature: -10~80ºC (14~176ºF) ● Service life: Electrically 500,000 ops
10A@250VAC IP63 bakelite 49.2x17.5x29.4mm (1.94x0.69x1.16")
Operating Characteristics
● OFmax 3.43N
● RFmin 1.12N
● PTmax 0.4mm
● OTmin 3.58mm
● MDmax 0.05mm
● OP 33.4+1.2mm
