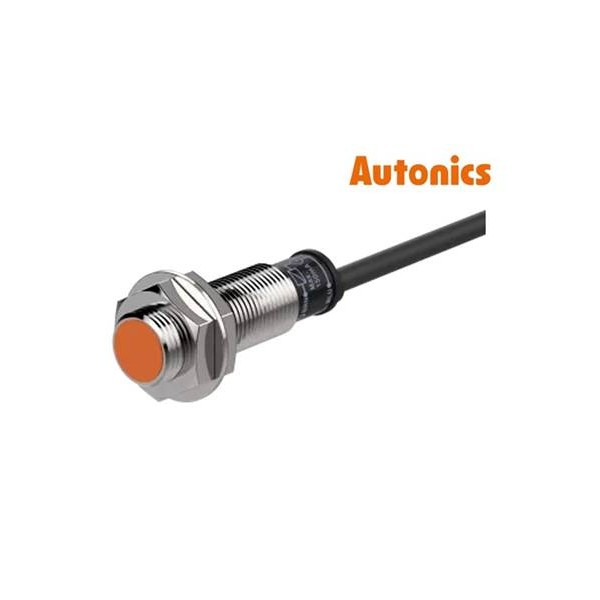

Διακόπτης επαγωγικός 12-24V DC Ø12 PNP NO 2.0mm Long type 3 καλωδίων PRL12-2DP Autonics

Περιγραφή.

Εγκατάσταση: Ενσωματωμένη
Διάμετρος πλευράς ανίχνευσης: Ø12mm
Απόσταση ανίχνευσης: 2mm
Τυπικός στόχος ανίχνευσης: 12x12x1mm (σίδερο)
Συχνότητα απόκρισης: 1,5kHz . Επαφή : ΝΟ

Data sheet.

Installation Flush
Sensing side diameter Ø12mm
Sensing distance 2mm
Hysteresis(distance) Max. 10% of sensing distance
Standard sensing target 12×12×1mm(iron)
Response frequency 1.5kHz
Indicator Operation indicator (red LED)
Unit weight (packaged weight) ≈ 72 g (≈ 84 g)
Power voltage 12 - 24 VDCspecialstring(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDCspecialstring
Current specification Current consumption: Max. 10mA
Control output ≤ 200 mA
Residual voltage Max. 1.5V
Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Insulation resistance ≥ 50 MΩ (500 VDCspecialstring megger)
Dielectric strength Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min
Vibration 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours
Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation)
Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
Protection structure IP67(IEC standard)
Connection Cable type
Cable Standard/material Standard type cable (black): polyvinyl chloride (PVC)
Material Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT
