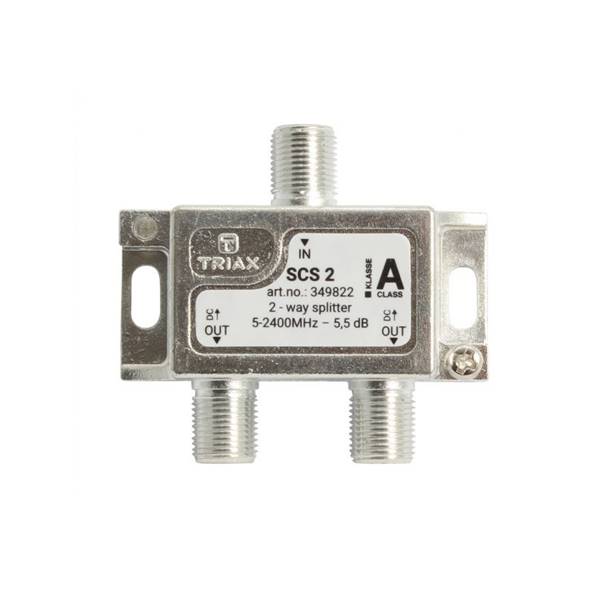

Διακλαδωτής 1->2 εξόδων SCS 2 Triax

SCS 2, 2-way splitter, 2.4GHz

TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• DC pass via diodes from all outputs
• High shielding against ingress noise like radiated by LTE mobile
• High quality die-cast housing tin (Sn) coated with solder shield bottom plate
• Grounding clamp terminals

LOSS
Insertion loss (in-out) 5-40 Mhz 4.4 dB
Insertion loss (in-out) 40-1000 Mhz 4.0 dB
Insertion loss (in-out) 1000-2150 MHz 5.5 dB
Insertion loss (in-out) 2150-2400 Mhz 6.0 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 22 dB
Isolation (tap-tap) 40-1000 MHz 25 dB
Isolation (tap-tap) 1000-2150 MHz 24 dB
Isolation (tap-tap) 2150-2400 MHz 22 dB
CONNECTORS
Number of inputs 1
Number of outputs 2
Connector Type F-female (IEC 61 169-24)
ELECTRICAL
Impedance 75 Ω
SHIELDING
Shielding effeciency VHF/UHF >85 dB
MECHANICAL
Main material Zinc diecast/Sn plated

Dimensions:
Product Height 47 mm
Product Width 52 mm
Product Depth 17 mm

Packaging Polybag
Packing QTY 1

Net Weight 0.035 kg
