Bosch παγίδα μαγνητική ΙSN-C60 καφέ
-28%
Προβολή

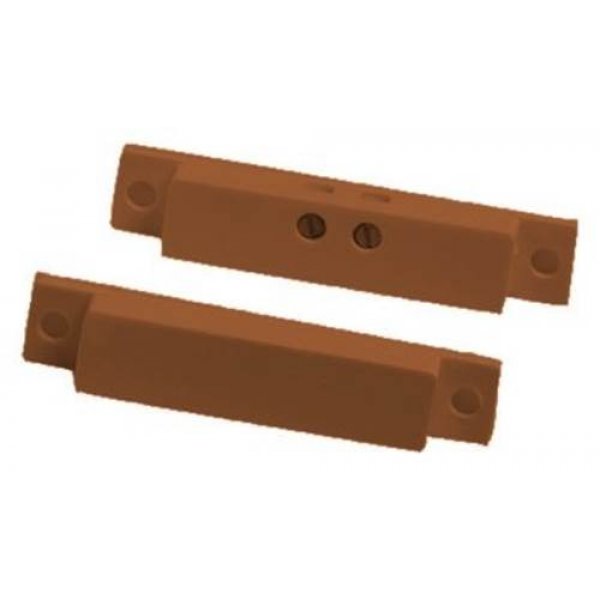

The contacts are available in brown or white. Both
models have a slim design with breakaway mounting
holes for tight-fitting applications. The terminal
connection eliminates the need for 15.24 cm or
25.4 cm (6 in. or 10 in.) leads.
Closed loop
Install with screws or with super adhesive
Breakaway mounting holes for a tight fit
Slim terminal connection design
Includes deactivated rhodium reed switch
Technical specifications
Specifications for All Models
Gap Width: 19 mm (0.75 in.)
Contact Dimensions: 6.35 mm x 9.5 mm x 50.8 mm
(0.25 in. x 0.375 in. x 2 in.)
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ (micro-ohm)
Minimum Breakdown Voltage: 250 VDC
Insulation Resistance: 1010 Ω
Electrostatic Cap: 0.3 PF
Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
models have a slim design with breakaway mounting
holes for tight-fitting applications. The terminal
connection eliminates the need for 15.24 cm or
25.4 cm (6 in. or 10 in.) leads.
Closed loop
Install with screws or with super adhesive
Breakaway mounting holes for a tight fit
Slim terminal connection design
Includes deactivated rhodium reed switch
Technical specifications
Specifications for All Models
Gap Width: 19 mm (0.75 in.)
Contact Dimensions: 6.35 mm x 9.5 mm x 50.8 mm
(0.25 in. x 0.375 in. x 2 in.)
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ (micro-ohm)
Minimum Breakdown Voltage: 250 VDC
Insulation Resistance: 1010 Ω
Electrostatic Cap: 0.3 PF
Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
Νέο
-29%
Κατόπιν Παραγγελίας
Ref Code: 038391
$$..
204,38€ 145,60€
Χωρίς ΦΠΑ:117,42€
Χωρίς ΦΠΑ:117,42€
