Μαγνητική παγίδα 107x50.8mm μεταλλική ΙSN-CMET-4418 Bosch
-21%
Προβολή

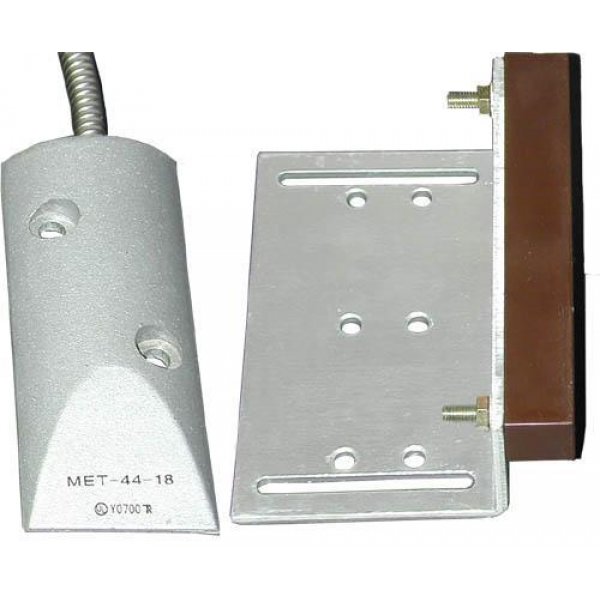

ISN‑CMET‑4418 Overhead Door Contact
Closed loop
Pin holds armored cable firmly in place
Includes adjustable magnetic assembly bracket
Ten installation options for the magnet
Technical specifications
Gap Width: 50.8 mm
Contact Dimensions: 107 mm x 50.8 mm x 12 mm
Cable Length: 46 cm
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ (micro-ohm)
Minimum Breakdown Voltage: 250 VDC
Insulation Resistance: 1010 Ω
Electrostatic Cap: 0.3 PF
Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
Maximum Voltage: 100 V
Operating Temperature Range: -40º to 60º C
The contact is available in a metal finish.
It uses epoxy and a special push-pin to hold the armored cable firmly in place
