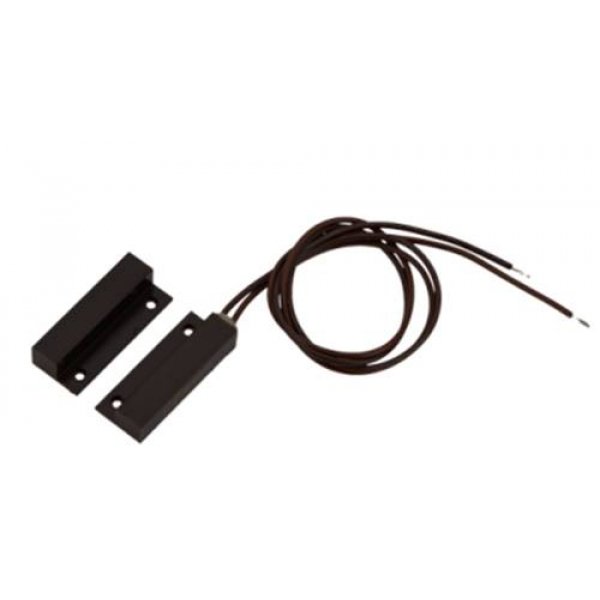

Μαγνητική παγίδα 33.78x13.46mm καφέ ΙSN-CFΜ-102B Bosch
-29%
Προβολή
The contacts are available in brown .
Both models are flange mountable with special adhesive and have leads that come from the side of the contact.
Closed loop
Flange mount with special adhesive
Side lead
Technical specifications
Gap Width: 25 mm (1 in.)
Contact both Dimensions: 7.62 mm x 33.78 mm x 13.46 mm
Wire Lead Lengths: 46 cm (18 in.)
Wire Lead Type: 0.8 mm (0.029 in.) 22 AWG, 7 stranded
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ (micro-ohm)
Minimum Breakdown Voltage: 250 VDC
Insulation Resistance: 10 Ω
Electrostatic Cap: 0.3 PF
Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
Maximum Voltage: 100 V
Operating Temperature Range: -40º C to 60º C (-40°F to -140°F)
Dimensions per contact: 3.4 x 3.7 x 3.4 cm
