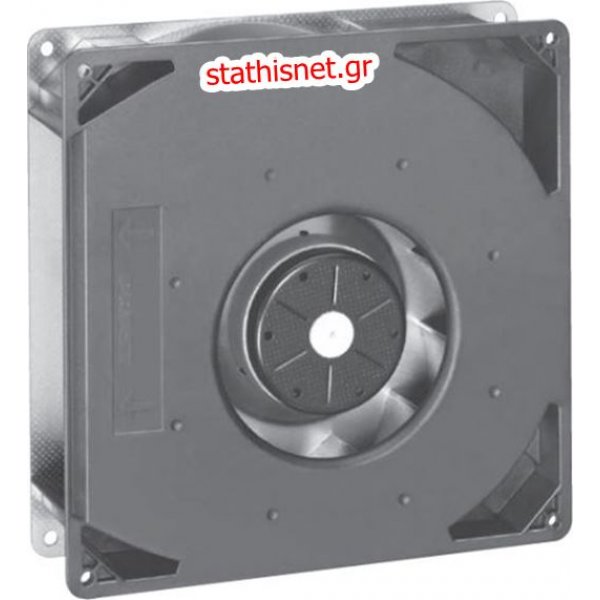

Ανεμιστήρας 48VDC 220x200x56 mm RG160-28/18N ΦΥΓΟΚΕΝΤΡΙΚΟΣ ΣΥΜΠΑΓΕΣ EBM-PAPST
-23%
Αναμένεται Σύντομα
Προβολή
General description Backward-curved impeller
Material of impeller Fiberglass-reinforced plastic
Housing material Scroll housing of fiberglass-reinforced plastic, housing base of sheet steel.
Direction of air flow Axial air intake, centrifugal air exhaust out of the outlet.
Bearing Ball bearings
Lifetime L10 at 40 °C 70000 h
Lifetime L10 at maximum temperature 35000 h
Connection line Flat connector 6.3 x 0.8 mm for protective earth
Motor protection Protected against reverse polarity and locking.
Locked-rotor protection With electronic overload protection
Approval VDE, CSA, UL, CE
Option Speed signal
Dimensions 220 x 220 x 56 mm
Weight 1400 gr
**με μεταλλικό πλαίσιο και πλαστικό φτερό**
