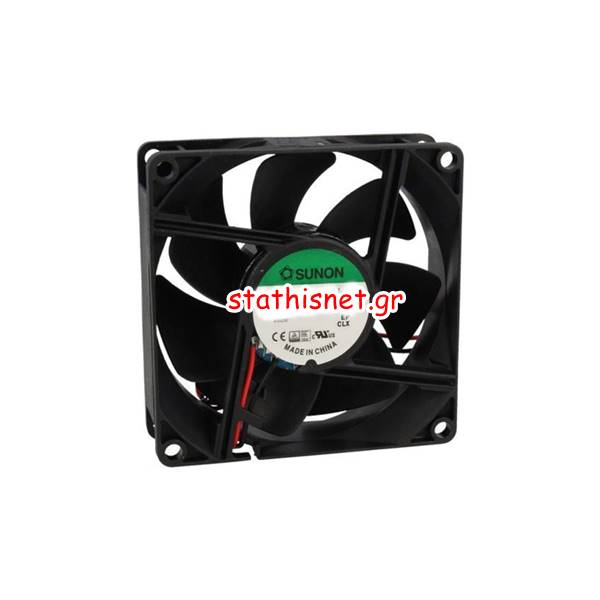

Ανεμιστήρας 12VDC 80x80x25 mm 96.85m3/h 2 wire PF80251V2-1000U-A99 Sunon
-12%
Προβολή
Specification
Manufacturer SUNON
Type of fan DC
Kind of fan axial
Operating voltage 6...13.8V
Power consumption 3.12W
Current rating 0.24A
Fan efficiency 96.85m3/h
Noise level 43.1dBA
Kind of Bearing Vapo
Rotational rate/speed 4500rpm
Current and power consumption tolerance ±15%
Min. insulation resistance 10MΩ
Impeller material thermoplastic
Leads lead x2
Operating temperature -10...70°C
Cable length 315mm
Fan dimensions 80x80x25mm
Wire size24AWG
Additional information
• Gross weight: 93,6 g
-24%
Αναμένεται Σύντομα
Ref Code: 021559
Manufacturer: ebm-papst
Nominal voltage: 48 DC.
Nominal voltage range 40~55 DC.
Speed (in min-1)..
272,80€ 207,33€
Χωρίς ΦΠΑ:167,20€
Χωρίς ΦΠΑ:167,20€
-23%
Αναμένεται Σύντομα
Ref Code: 021298
Manufacturer: ebm-papst
RoHS: RoHS Compliant Details
Type: Axial Fans
Supply Voltage: 12 V
Airfl..
44,03€ 33,74€
Χωρίς ΦΠΑ:27,21€
Χωρίς ΦΠΑ:27,21€
Κατόπιν Παραγγελίας
Ref Code: 034354
..
229,40€
Χωρίς ΦΠΑ:185,00€
Χωρίς ΦΠΑ:185,00€
-19%
Ref Code: 029725
Frame Dimensions - mm: 80 mm L x 32 mm W x 80 mm H
Operating Supply Voltage: 24 VDC
Bearing Type:..
74,49€ 60,65€
Χωρίς ΦΠΑ:48,91€
Χωρίς ΦΠΑ:48,91€
-23%
Αναμένεται Σύντομα
Ref Code: 021289
Bearing Type: Ball
Current Type: DC
Flow Rate - Imperial: 40.6cu.ft/min
Flow Rate - Metric: 69m³..
28,17€ 21,58€
Χωρίς ΦΠΑ:17,40€
Χωρίς ΦΠΑ:17,40€
