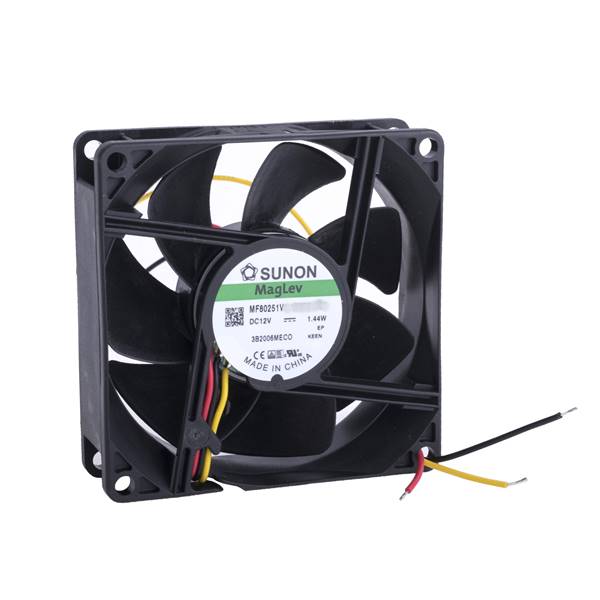

Ανεμιστήρας 12VDC 80x80x25 mm 3 wire MF80251V Sunon
-12%
Προβολή
Specification
Type of fan DC
Kind of fan axial
Operating voltage 4.5...13.8V
Supply voltage 12V DC
Fan dimensions 80x80x25mm
Power consumption 1.44W
Current rating 0.12A
Fan efficiency 69.29m3/h
Noise level 33dBA
Kind of Bearing Vapo
Signal output F type
Rotational rate/speed 3200rpm
Min. insulation resistance 10MΩ
Impeller material thermoplastic
Enclosure material thermoplastic
Leads 3 leads
Operating temperature -10...70°C
Cable length 315mm
Flammability rating UL94V-0
Additional functions Autorestart
Fan motor brushless DC
Static pressure 4.57mm H2O
Wire size 24AWG
Additional information
• Gross weight: 75.4 g
